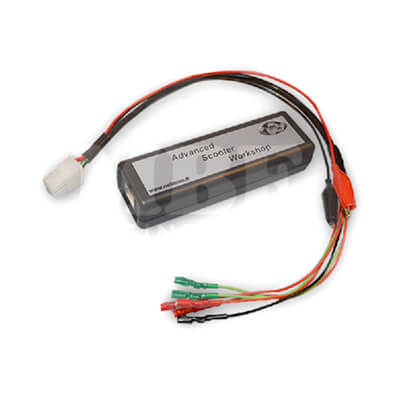

Advanced Scooter Workshop K-Line Key Programmer For Scooters With ASW Software

Advanced Scooter Key Programmer Overview:

The Advanced Scooter Key Programmer is your one-stop solution for scooter ignition control unit CDI key programming and data repairing. The Advanced Scooter Key Programmer is designed for Scooters brands like PIAGGIO, APRILIA, GILERA, PEUGEOT, VESPA, and DERBI

The Advanced Scooter CDI programmer ensures a seamless experience in reading and programming the scooter's CDI unit via the K-line cables. Say goodbye to the hassle of opening, cutting, or soldering, and embrace the future of scooter maintenance.
Unlock the full potential of your workshop with the Advanced Scooter Key Programmer. This top-tier ECU reading tool is tailored to meet the needs of scooter enthusiasts and professionals, This innovative device allows hassle-free reading and programming of the scooter's CDI unit, without the complexities of physical modification.

Why Choose the Advanced Scooter Key Programmer?

• Efficient & Safe: Access the ECU without causing damage using the ECU connection plug.
• Broad Compatibility: Designed for leading scooter brands like PIAGGIO, VESPA, and more.
• User-Friendly: Connect with just four wires without any need to access the ECU's internals.
• Advanced Technology: Retrieve T5-11 Transponder chip formatted Key Data, even when all keys are misplaced.
• Versatility: Works with various ignition and injection controllers from MAGNETI MARELLI & EFI TECHNOLOGY.
• Swift Resetting: Quickly reset CDI controllers to their original settings.
• K-line Protocol Integration: Guarantees data integrity and reliable transfer.

Advanced Scooter Key Programmer Supported Bike Models:

• PIAGGIO: Liberty, Zip 100, Beverly 350, Medley 150.
• APRILIA: SR Max 300, Scarabeo, SportCity One.
• GILERA: Runner 125, Nexus 300, Fuoco 500.
• PEUGEOT: Speedfight, Citystar, Django.
• VESPA: Primavera, GTS 300, PX 150.
• DERBI: Atlantis, Boulevard, GPR 125.

Advanced Scooter Key Programmer Supported CDI Controllers:

• MAGNETI MARELLI: ACI100 / ACI50x / ACI60x with MC68HC05B8/B16; IMM003/IMM006 with MC68HC05E6 (0F82B / 0G72G); MIU1.XX / MIU2.XX with ST10F269-T3; MIU G3 with Infineon SAK-XC2060 and 95320; IAW15 with MC68HC11F1 (2E87J).
• EFI TECHNOLOGY: ACII/AC2I/AC5I/AC8I/AC21I/AC23I with ST72 and 95040; AC19I / AC20I / AC25I / AC32I with ST72 MCU and 95080.

Advanced Scooter Key Programmer Frequently Asked Questions:

• Can The Advanced Scooter tool program a key by itself?
• No, The Advanced Scooter Key Programmer reads out the transponder key data from the Scooter CDI ECU. You'll need a separate key programmer to write the data into the key.
• How can I store transponder data?
• Detailed steps have been provided in the product description. It involves reading EEPROM data, converting transponder data, recalculating CRC, and more.
• Is the Advanced Scooter tool compatible with the MAGNETI MARELLI IAW15 injection control module?
• Yes, it supports the MAGNETI MARELLI IAW15 with the MOTOROLA MC68HC11F1 MCU.
• Does the Advanced Scooter key tool reset the CDI controller?
• The Advanced Scooter Key Programmer allows users to reset CDI controllers to their original, brand-new settings.
• What brands is this programmer compatible with?
• It's compatible with PIAGGIO, APRILIA, GILERA, PEUGEOT, VESPA, and DERBI.
• Do I need to open the ECU to read the ECU Data using this tool?
• No, you can connect the Advanced Scooter key programmer cable directly to the ECU connection plug without opening it.
• Where can I find the Scooter CDI Wiring Diagram?
• The Advanced Scooter software provides a free wiring diagram for all supported CDI modules

Advanced Scooter Workshop K-Line Key Programmer For Scooters With ASW Software

Specifications:

Supported Models:

Item Specifications:

• Product Code: ABK-4300
• Manufacturer: ABKEYS

Fitments:

• APRILIA -
• MOTORCYCLES -
• PIAGGIO -
• VESPA -
