Autel MaxiSys Ultra EV Diagnostic Tool with MaxiFlash VCMI With 2 Years Free Update

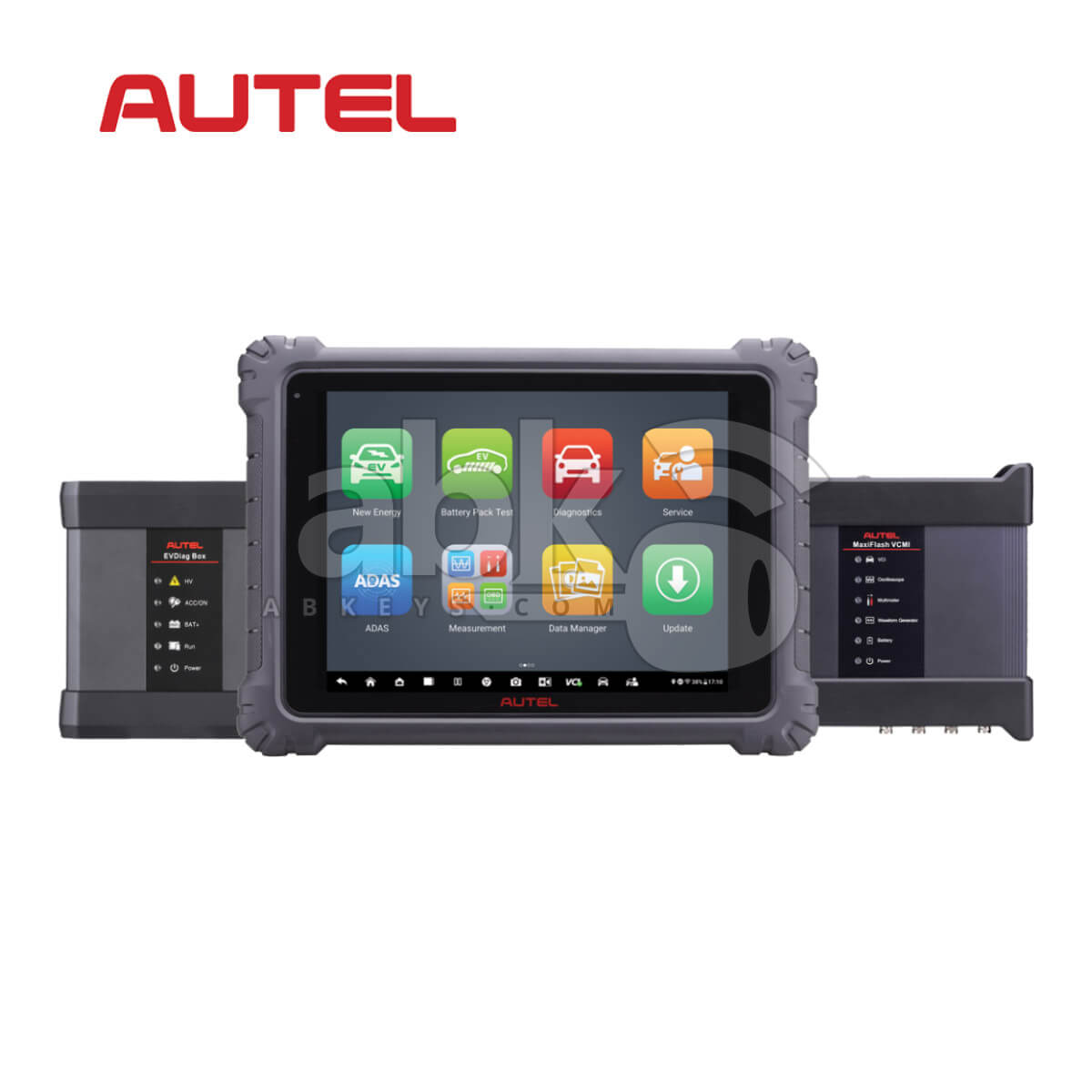

Autel MaxiSys Ultra EV Diagnostic Tool Overview:

The MaxiSys Ultra EV is a new generation of intelligent diagnostics tablets compatible with U.S., Asian, and European electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers.

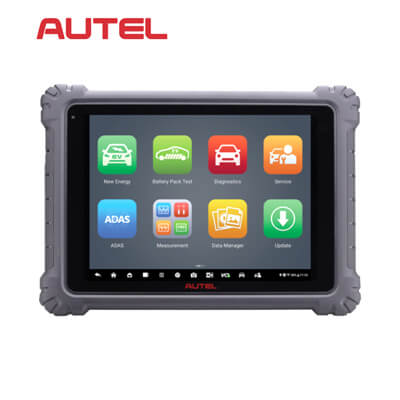

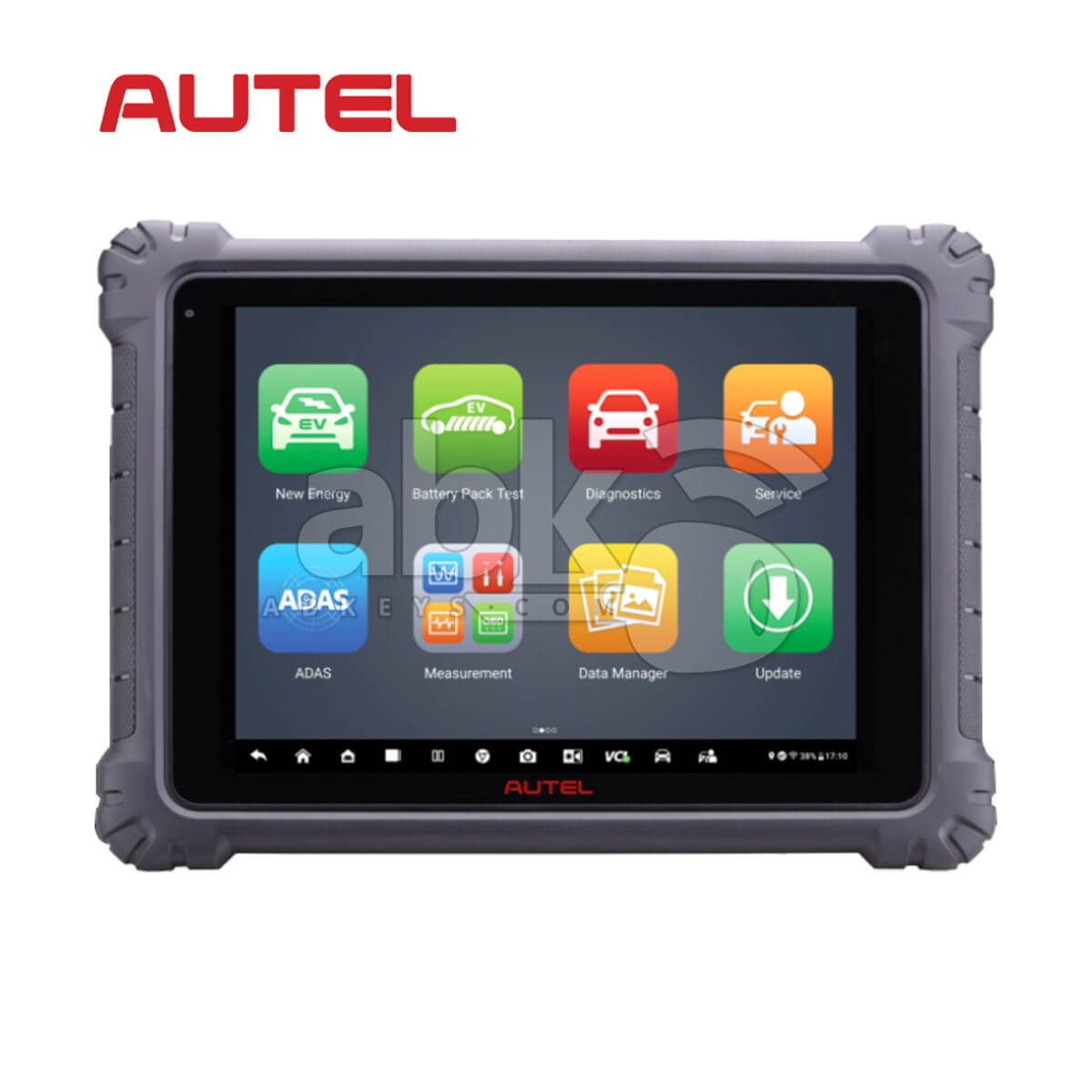

The Autel Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5 -in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box. Includes one year of free software updates and is covered by a one-year limited warranty.

Note: This device is Ip Restriction for those Areas: (India, the Middle East, and Africa ).
If you would like to purchase it for other countries please contact us before placing your order to get your offer

The Autel MaxiSys Ultra EV has 1 Years Warranty / 2 Years of Free Software Update

Autel MaxiSys Ultra EV Features:

• Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
• Rapid analysis of EV high-voltage system including the ability to read and erase codes and view live data
• Comprehensive diagrams of the high-voltage system block, components, and sockets; Step-by-step system disassembly instructions
• State of Charge and State of Health analysis for true battery condition
• Perform battery analysis via OBDII port, specialty cables, and jumpers
• Automatic system and software updates with real-time push message notifications via the internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes
• Supported Protocols:
• DoIP
• PLC J2497
• ISO-15765
• SAE-J1939
• ISO-14229 UDS
• SAE-J2411 Single Wire Can (GMLAN)
• ISO-11898-2
• ISO-11898-3
• SAE-J2819 (TP20)
• TP16
• ISO-9141
• ISO-14230
• SAE-J2610 (Chrysler SCI)
• UART Echo Byte
• SAE-J2809 (Honda Diag-H)
• SAE-J2740 (GM ALDL)
• SAE-J1567 (CCD BUS)
• Ford UBP
• Nissan DDL UART with Clock
• BMW DS2
• BMW DS1
• SAE J2819 (VAG KW81)
• KW82
• SAE J1708
• SAE-J1850 PWM (Ford SCP)
• SAE-J1850 VPW (GM Class2)

Autel MaxiSys Ultra Advanced 5-IN-1 VCMI Features:

The VCMI of Autel Ultra EV is integrated with VCI functions + Oscilloscope + Waveform Generator + Multimeter + CAN UBS CHECK, which makes the tool has never been so powerful.

• VCI Connection (WiFi / BT / USB):
• Support Dual Wireless Mode, the new host, and communication box are connected through Wi-Fi, Wi-Fi communication transmission speed is faster/ more stable/ strong anti-interference ability, the actual test wireless distance is more than 50m, and the diagnosis speed is more than 30% faster.
• Oscilloscope:
• VCMI integrated oscilloscope, through 4 major technologies: Large Bandwidth, High Sampling Rate, Deep Storage, and Massive Preset Cases, supports 2 major features: Zoom & Playback, Advanced Triggering, improving the efficiency of solving complex faults.
• Ultra-Precision: 20MHz large bandwidth, up to 80MS/s sampling rate, accurate waveform acquisition, covering a wide range of vehicles
• More Complete: 32M memory, can capture complex signals, amplify and playback waveforms; support advanced edge triggering and pulse triggers, and does not miss any key events.
• Easy to Use: Built-in massive preset case and waveform library, supplemented by the instant help system
• PS: Oscilloscope instant help system: After selecting any function on the oscilloscope screen, click the "bulb" icon to instantly locate the corresponding function in the manual.
• Waveform Generator:
• Supports multiple signal modes, including DC voltage, square wave, square wave (X+Y), triangle wave, actuator drive, and arbitrary waveform. Simulate the signals of various sensors and ECU modules, you can intuitively judge whether it is a hardware problem without changing parts.
• Multimeter:
• The Multimeter is mainly used to measure voltage, current, resistance, frequency, diode, duty cycle, pulse width, and connectivity.
• CAN UBS CHECK:
• By detecting the signal of the OBD interface, you can quickly determine whether the communication status is normal. If the signal is normal, the indicator light will flash; if there is no signal, make sure the pins are set correctly.

 Autel MaxiSys Ultra EV Box Contains:

Autel MaxiSys Ultra EV Diagnostic Tool with MaxiFlash VCMI With 2 Years Free Update

Specifications:

Item Specifications:

• Product Code: ABK-1310
• Manufacturer: Autel [Genuine]
• Compatible Part Number: Autel Ultra EV
