Autel Universal Smart Key PCB For Audi MLB 3Buttons IKEYAU004AL

Autel Universal Smart Key PCB For Audi MLB 3Buttons IKEYAU004AL

Name: Autel Universal Smart Key PCB For Audi MLB 3Buttons IKEYAU004AL
Brand: Autel
SKU: ABK-4478-IKEYAU004AL
Price: 28.99 USD
Availability: InStock

Product SKU: ABK-4478-IKEYAU004AL

Category: Autel Diagnostic Tools,Remote Controls

Vendor: Autel

Available:

In stock

Out of stock

Pre-order

$28.99

Description

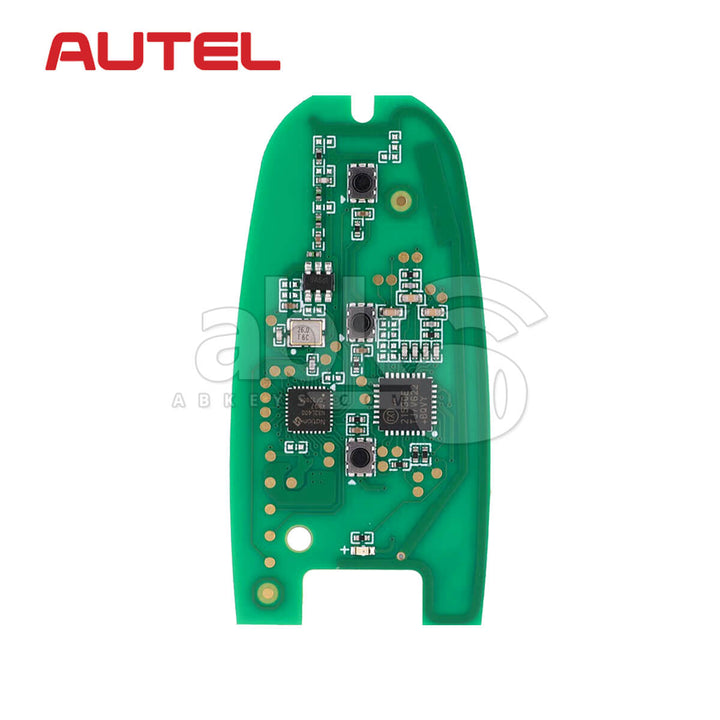

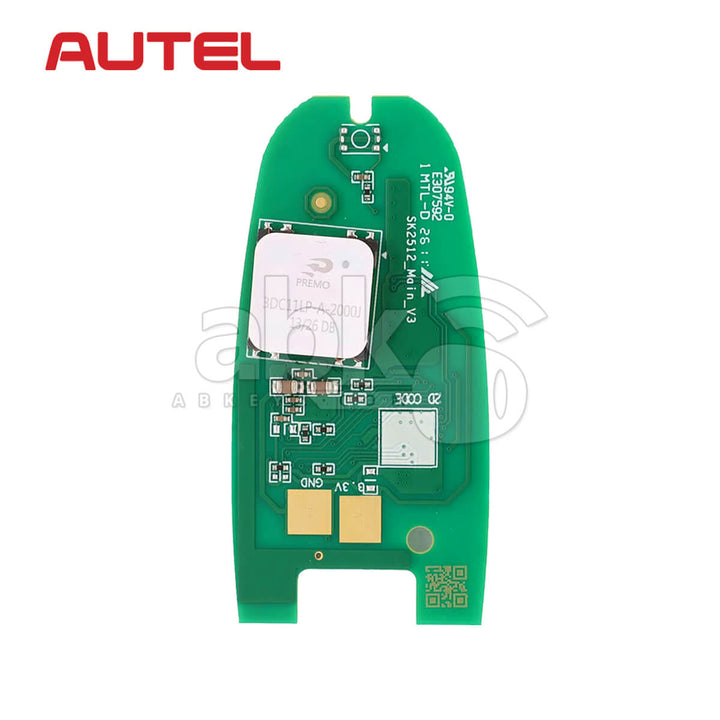

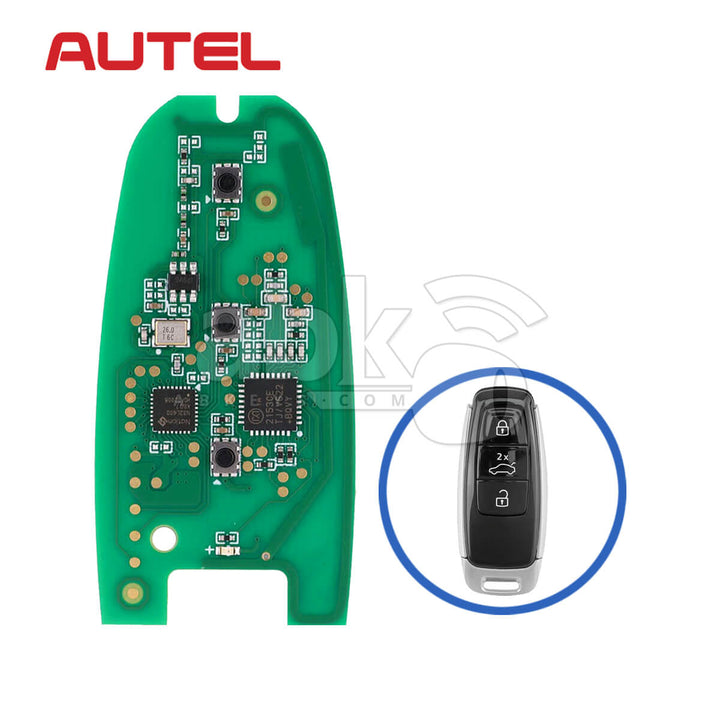

Original Autel Audi MLB Smart Key PCB Board

The Autel Audi MLB Smart Key PCB Board is a programmable replacement key circuit board designed for supported Volkswagen AG vehicles using the MLB immobilizer platform.

Designed for professional automotive locksmiths and key programming specialists, these Autel MLB replacement PCBs can be used to replace a damaged or non-functional original smart key circuit board and create a compatible replacement key using supported Autel programming equipment.

The range includes Panda Style and Droplet / Waterdrop Style circuit boards with 3-button and 4-button configurations.

Autel Audi MLB Smart Key PCB Models

IKEYAU003AL Audi MLB Droplet / Waterdrop Style - 3 Buttons IKCBAU3W
IKEYAU004AL Audi MLB Droplet / Waterdrop Style - 4 Buttons IKCBAU4W
IKEYAU013AL Audi MLB Panda Style - 3 Buttons IKCBAU3P
IKEYAU014AL Audi MLB Panda Style - 4 Buttons IKCBAU4P

Select the correct Autel MLB PCB according to the original key circuit board style and button configuration.

Autel Audi MLB Smart Key PCB Main Features

Original Autel programmable replacement smart key PCB
Designed for supported Volkswagen AG MLB-platform vehicle keys
Suitable for replacing damaged or non-functional compatible original key circuit boards
Available in Panda and Droplet / Waterdrop PCB styles
Available in 3-button and 4-button versions
Designed for programming with the Autel APB300
Works with compatible Autel MaxiIM IM508 and IM608 series tablets
Suitable for professional automotive locksmith and key programming applications

Autel APB300 Programming Requirements for MLB Key PCB

Programming these Autel MLB replacement key PCBs requires the Autel APB300 MLB/MQB Key Programmer together with a compatible Autel MaxiIM IM508 or IM608 series tablet.

Autel APB300 MLB/MQB Key Programmer
Autel MaxiIM IM508 / IM508S Series
Autel MaxiIM IM608 / IM608 Pro / IM608 Pro II Series

The APB300 works with the MaxiIM tablet to obtain the required immobilizer information from a supported working MLB key and prepare the replacement PCB for programming.

Autel Audi MLB Smart Key PCB Programming Process

Confirm the vehicle uses a supported MLB key system.
Select the correct PCB style and button configuration.
Connect the APB300 to a compatible MaxiIM tablet.
Read the required data from the working original MLB key.
Prepare the replacement Autel PCB.
Complete the Add Key / key learning procedure.

Always follow the latest instructions displayed by the Autel programming software, as the procedure can vary by vehicle and immobilizer version.

Autel MLB Key PCB Supported Vehicle Platform

The IKCBAU3W, IKCBAU4W, IKCBAU3P and IKCBAU4P circuit boards are designed as replacement key PCB solutions for supported Volkswagen AG MLB-platform vehicles.

Depending on vehicle and Autel software coverage, MLB applications can include selected vehicles from:

Audi
Volkswagen
Porsche
Bentley
Lamborghini

Compatibility depends on the specific vehicle model, production year, market, immobilizer system and original key configuration.

Important: Do not select the PCB based only on the vehicle make or model. Compare the original key PCB and confirm compatibility through the latest Autel software before programming.

Autel MLB and MQB Key Programming Compatibility

The Autel APB300 supports programming functions for selected Volkswagen Group MLB and MQB systems.

However, the IKEYAU003AL, IKEYAU004AL, IKEYAU013AL and IKEYAU014AL products listed here are Autel replacement PCB solutions intended for supported MLB key applications.

MQB vehicles may require a different Autel key or PCB solution depending on the vehicle and immobilizer system.

Autel Audi MLB Smart Key PCB Package Contents

1 × Selected Original Autel MLB Smart Key PCB Board

PCB board only. Key housing, blade and battery are not included.

Autel Audi MLB Smart Key PCB Compatibility Notice

This is a professional automotive electronic key programming product. Compatibility can vary according to vehicle production date, regional specification, immobilizer generation, original key type and Autel software coverage.

Always verify the original key PCB and vehicle information before ordering or programming.

For professional automotive locksmith and automotive electronic repair use.

Autel Audi MLB Smart Key PCB FAQ

What is the Autel Audi MLB Smart Key PCB?

The Autel MLB Smart Key PCB is a programmable replacement key circuit board designed for supported Volkswagen AG vehicles using the MLB immobilizer platform. It is intended for professional automotive locksmith and replacement key applications.

Which Autel MLB Smart Key PCB models are available?

The available models are IKEYAU003AL / IKCBAU3W Droplet 3 Buttons, IKEYAU004AL / IKCBAU4W Droplet 4 Buttons, IKEYAU013AL / IKCBAU3P Panda 3 Buttons and IKEYAU014AL / IKCBAU4P Panda 4 Buttons.

What is the difference between Panda Style and Droplet / Waterdrop Style?

Panda and Droplet / Waterdrop refer to different PCB layouts used in compatible MLB smart keys. Compare the replacement PCB with the original key before selecting the required version.

Which Autel programmer is required for the MLB Smart Key PCB?

The Autel APB300 MLB/MQB Key Programmer is used together with a compatible Autel MaxiIM IM508 or IM608 series tablet for supported MLB programming procedures.

Can the Autel KM100 program these MLB Smart Key PCBs?

The KM100 alone is not the required programming solution for these MLB replacement PCBs. Supported procedures require the APB300 together with a compatible MaxiIM IM508 or IM608 series device.

How is the Autel MLB replacement PCB programmed?

The APB300 and compatible MaxiIM tablet are used to read the required information from a supported working MLB key, prepare the replacement PCB and complete the required vehicle key learning procedure.

Which vehicle brands are supported by Autel MLB Key PCB programming?

Depending on the specific vehicle and current Autel software coverage, supported MLB applications can include selected Audi, Volkswagen, Porsche, Bentley and Lamborghini vehicles. Compatibility should always be checked before programming.
