3+) 0D46J 2D47J BMW Key Programmer ABK 1407 ABKEYS

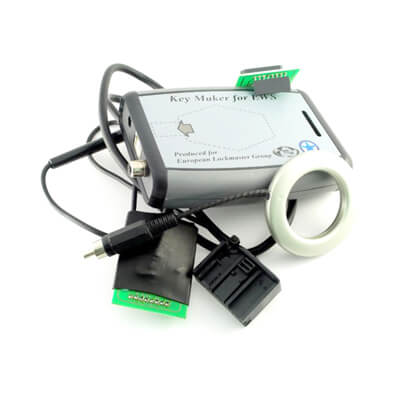

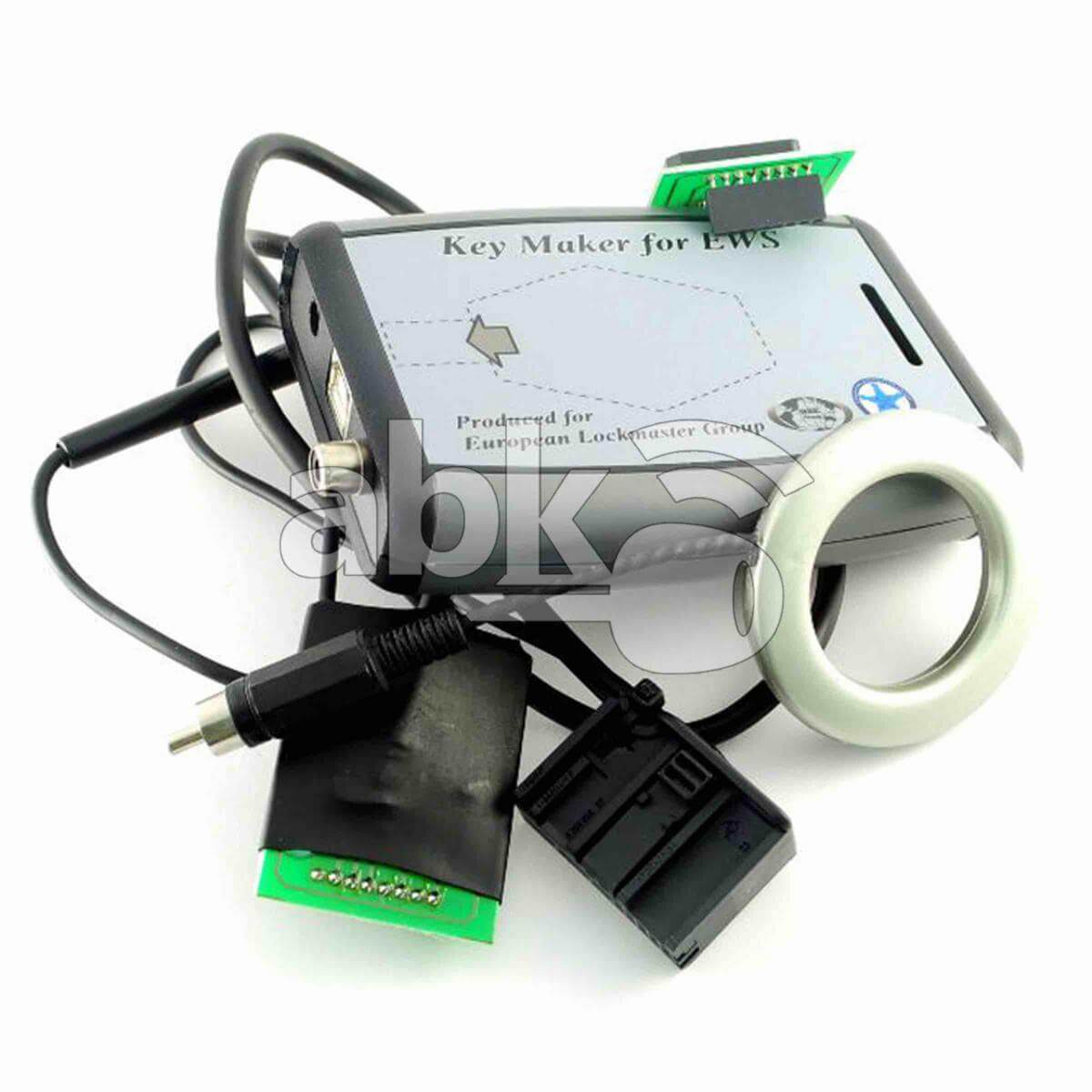

Bmw EWS (1/2/3/3+) 0D46J, 2D47J BMW Key Programmer

Name: Bmw EWS (1/2/3/3+) 0D46J, 2D47J BMW Key Programmer
Brand: ABKEYS
SKU: ABK-1407
Price: 299.99 USD
Availability: InStock

Product SKU: ABK-1407

Category: Key Programming Devices

Brands: Bmw,Land Rover,Mini Cooper,Range Rover

Vendor: ABKEYS

Available:

In stock

Out of stock

Pre-order

$299.99

~~$375.75~~

Description
Software & PDF Files

BMW EWS Key Programmer Overview

BMW KEY MAKER TOOL for BMW EWS Module is the best BMW key programming device for the EWS module and it has been designed to work with the EWS security system [All BMW EWS, Range Rover EWS & Mini Cooper EWS vehicle models equipped with EWS Immobilizers from 1995 to 2005].

The BMW EWS Key Programming device is reading in Secure mode and doesnt damage the EWS unit, and doesnt cause any BMW EWS Fault.

BMW Key Programmer Main Features:

BMW EWS Key Programmer work with all modifications of EWS1, EWS2, EWS3, EWS3+
Reading and writing BMW EWS3 and EWS3+ memory via unit connector (K-line) without any need to de-solder the EEPROM and solder it on board again
BMW EWS key maker automatically detects of EWS version from EEPROM memory
Additional keys programming
Used keys adding [when Password is available]
Used keys renew function [when Password is available]
BMW keys synchronization
Activation and deactivation of available keys
BMW EWS coding
BMW EWS identification data changing (production date, EWS number, etc.
Used EWS3 resetting to factory conditions
EWS VIN changing
Key VIN change [> 1998]
EWS mileage changing [> 1998]
Key mileage changing [> 1998]
BMW key programming tool can program the original new remote control even without the transponder chip

How to Read BMW EWS Module With BMW EWS Reader:

Disconnect and take off the EWS module from a car.
Open it and take off an electronic board from the EWS box cover
Connect the device to your PC via USB cable.
Install drivers from the "USB_Driver" folder. If you work with a D47J mask use adaptor if it is D46J use a K-line cable.
Start the BMW EWS Reader software
The software is ready to work via K-line cable at once. If you need to use the D47J adapter change the operation mode to 2D47J
Dont try to read the 2D47J mask processor via K-line cable. It can damage the processor's internal memory.
Supply the power 12 Volt 500mA and over to the device. You have to connect the power supply if you read EWS internal memory via its connector only.
Then find and clean the vanish on this point of the EWS board
Press the READ button. You will see the report at the bottom of the window.
You can remove the tester when the reading process ended.
After reading the "OK" the report will appear at the bottom of the window. Then press the EDITOR bookmark at the top of the window and save the file.
BMW EWS key coding can be done by pressing Read / Write key button

BMW EWS Editor Software Features:

Vehicle parameters - informs about the following data:
VIN - vehicle identification number and its control sum.

Odometer - vehicles mileage. For old EWS types, it will be 9XXXXX km.
Password - password for key reprogramming. If there are passwords mismatch in the EWS and in the key the car does not start.

EWS3 Factory Reset (FR) function (FR)
Helps you to set this EWS to virgin condition.

Purpose of FR function:

Eeprom repairing - if it has been erased while reading via K-line (for mask set D47J)
memory repairing for damaged EWS3
memory repairing after losing EWS3

BMW EWS Key synchronization repairing.
When the customer tries to start his car with a low battery voltage, he can damage the synchronization of the key.

The diagnostics with the dealers equipment (GT-1 or Modic-DIS) can detect a mismatch in the rolling code of the key.
But that diagnostic equipment cant repair it.
Dealers will order the new key.
The EWS Editor system allows you to repair a synchronization of the EWS and the key.

BMW EWS Repairing function.
EWS Can be repaired using DME Data and EWS after Factory Reset procedures and BMW DME EWS alignment with dealer device

BMW Key Programmer Supported Models:

BMW E34 EWS (5xx)
BMW E36 EWS (3xx)
BMW E38 EWS (7xx)
BMW E39 EWS (5xx)
BMW E46 EWS (3xx)
BMW E53 EWS (X5)
BMW Z4 EWS
Mini Cooper EWS
Range Rover Vogue EWS
Rover 75 EWS
