Formula Flash Universal ECU Bench Wiring Harness Kit (42-Pin Set)

The Formula Flash Universal ECU Bench Harness is a professional-grade solution for reading, writing, and diagnosing ECUs without opening the casing. This 42-pin color-coded set facilitates a direct pin-to-pin connection, eliminating the risk of physical hardware damage while significantly speeding up your tuning workflow.
Designed for professional automotive workshops and locksmiths, the harness features clearly color-coded wiring and multiple pin adapters, allowing fast and accurate ECU bench connections across a wide range of ECU types.

FormulaFlash ECU Boot Cable Benefits & Functionality:

• Non-Invasive Bench Mode: Perform full ECU cloning and programming without removing the cover.
• Universal Compatibility: Supports a vast range of ECU types and pin groups (A through G).
• Error-Free Wiring: Features 13 distinct color-coded wires for rapid, accurate pin identification.
• Professional Reliability: Reduces the risk of short circuits or pin damage during testing and diagnostics.

Programmer Compatibility:

The Formula Flash bench wiring harness is compatible with most ECU programmers supporting bench pin connections, including:

• Formula Flash ECU Programmer  ABK-5848
• KT200II ECU Programmer
• KT200 ECU Programmer
• Magic Motorsport FLEX ECU Programmer
• Other compatible ECU bench programming tools

Supported Applications:

• ECU bench reading and writing
• ECU cloning preparation
• ECU diagnostics and testing
• Safe ECU programming without opening housing

Technical Specifications:

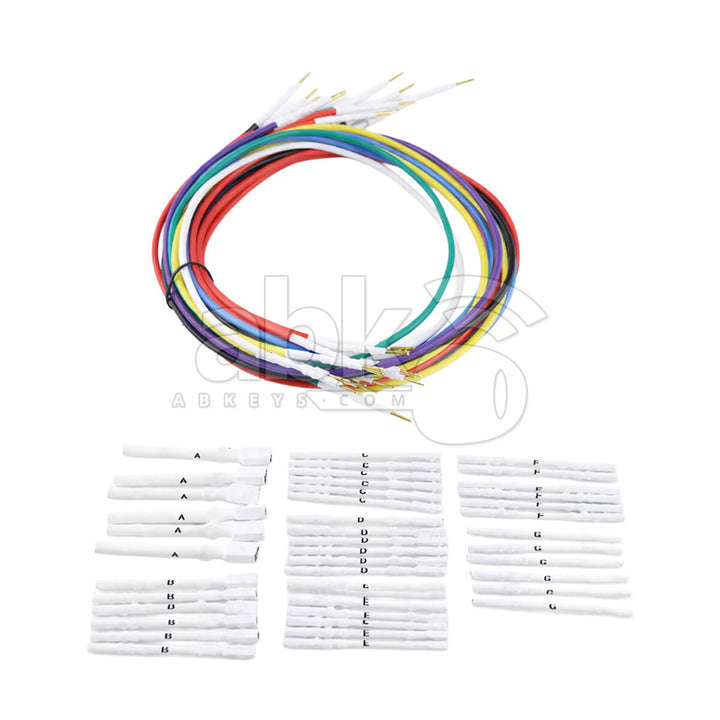

What’s in the Box?

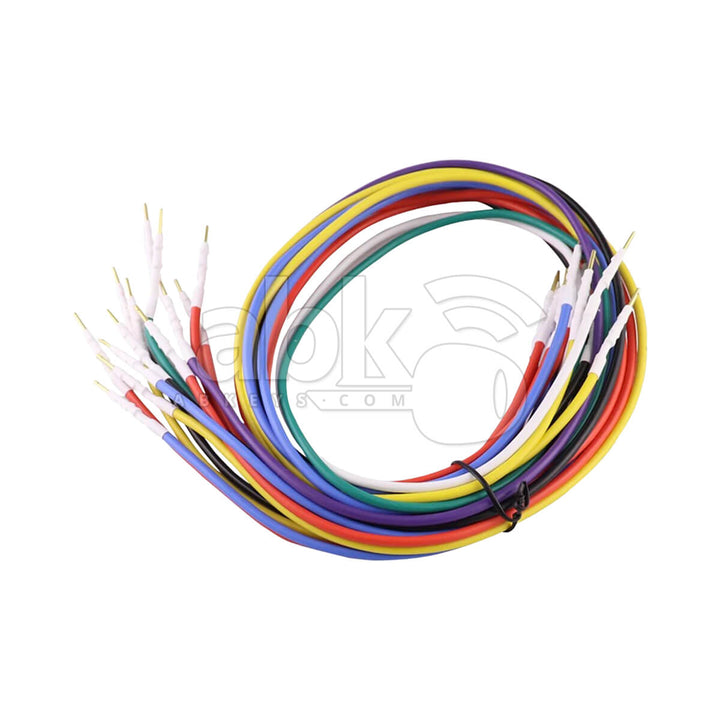

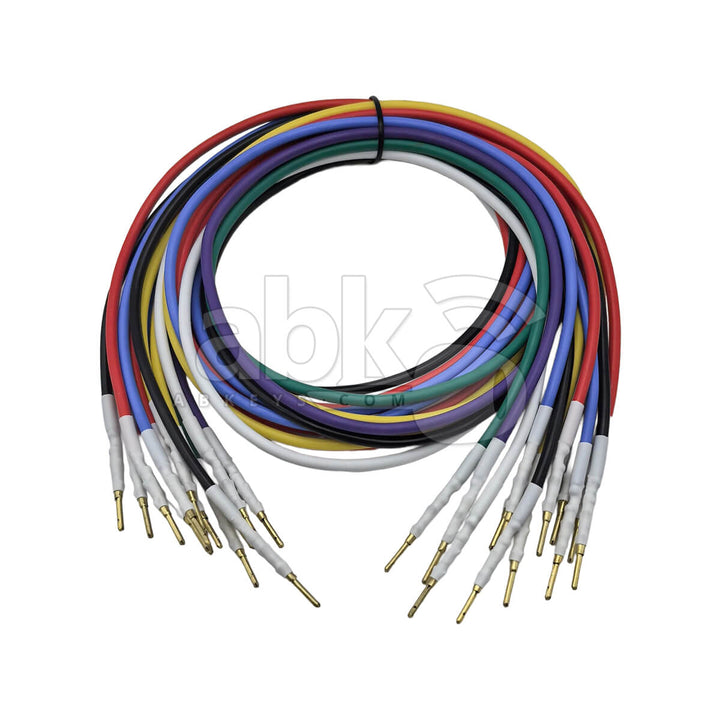

• 1 × Universal Color-Coded Jump Cable (13 wires)

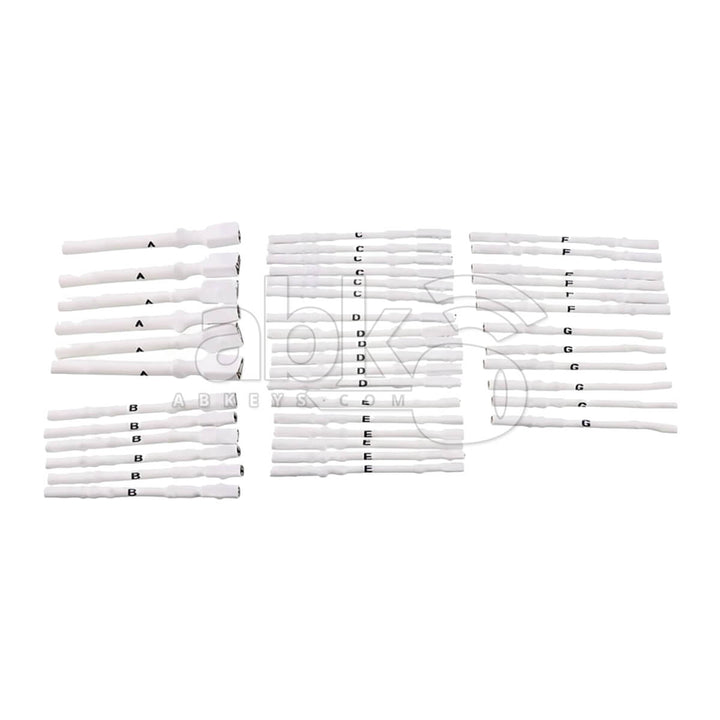

• 42 × Precision Pin Adapters (5 sets per size for maximum flexibility)

FormulaFlash Programmer Extra wiring harness for ECU Bench Programming, Reading

Specifications:

Item Specifications:

• Product Code: ABK-266
• Manufacturer: Formula Flash [Genuine]
