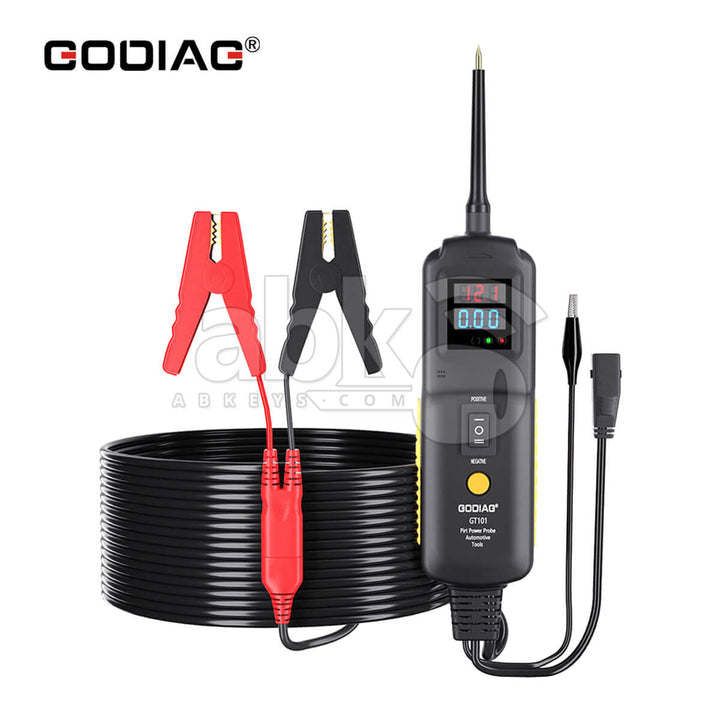

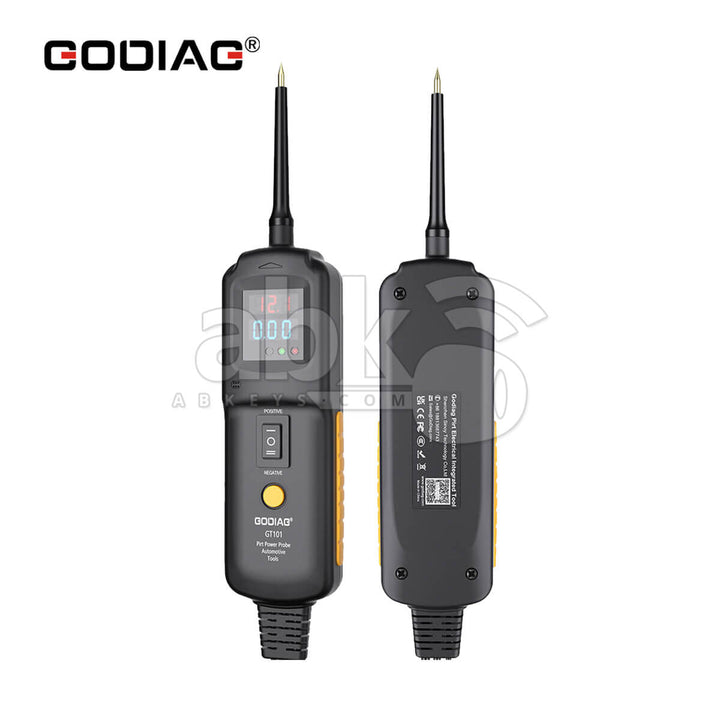

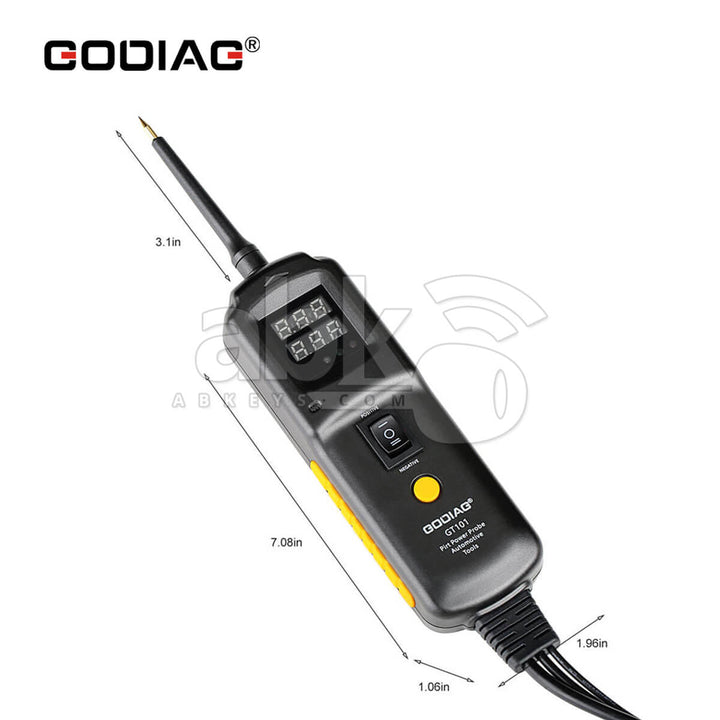

GODIAG GT101 4 in one DC 6-40V Circuit Tester Power Probe Relay Tester

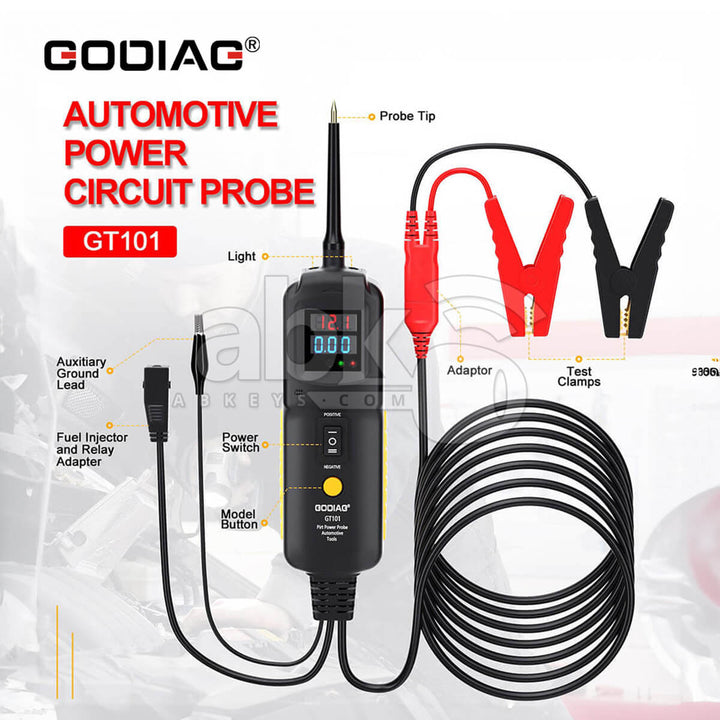

GODIAG GT101 4-in-1 Probe Relay Tester Tool Overview:

The GODIAG GT101 PIRT Power Probe is a versatile and multi-functional diagnostic tool designed to simplify vehicle electrical system testing. It operates within a 6-40V range, making it ideal for diagnosing circuits, testing relays, cleaning fuel injectors, and performing various electrical troubleshooting tasks. Whether you're working on cars, trucks, buses, or other vehicles, this compact and lightweight tool enhances your diagnostic efficiency with its all-in-one functionality.

The GODIAG Power Probe is not just your typical electrical tester; it's designed to tackle a range of tasks such as relay testing, fuel injector cleaning, and circuit troubleshooting. Its built-in overload protection, long 20ft extension cable, and easy-to-read display make it a user-friendly solution for both professionals and DIY mechanics. The tool allows you to detect electrical faults quickly, saving time and preventing potential damages to vehicle components.

Why Choose GODIAG GT101 PIRT Power Probe?

• All-in-one Functionality: Combines circuit testing, relay testing, fuel injector cleaning, and current detection into one device.
• Easy to Use: Compact, lightweight (2.5 lbs.), with a large, easy-to-read display, and a 20ft extension cable for maximum accessibility.
• Overload Protection: Built-in 10A circuit breaker to prevent overloading, protecting both your vehicle and the tool.
• Versatile Application: Supports all 6-40V vehicle systems, including cars, trucks, buses, and boats.
• Illuminated Work Area: Equipped with a built-in flashlight, making it easier to work in low-light environments.
• Overload Protection: Automatic shutoff when current exceeds 20A to prevent damage.
• User-friendly Interface: Easy-to-read digital color display that’s visible in any lighting condition.

GODIAG GT101 Power Probe Tester Highlights:

• Versatile 4-in-1 Power Probe: Embrace the sophistication of the GODIAG GT101, a comprehensive tool that merges power probing, electrical diagnostics, circuit testing, and current detection into one compact device. This power probe is perfect for diagnosing and repairing a wide range of automotive issues, supporting vehicles with working voltages from 6V to 40V.

• Expert Circuit Tester: Featuring three distinct LED indicators, the GT101 excels in vehicle wiring troubleshooting. It can quickly identify electrical faults, including open and short circuits, and determine polarity and pulse currents, which are essential for maintaining vehicle safety and functionality.

• Fuel Injector Tester and Cleaner: The GT101 is not only a reliable car diagnostic tool but also specializes in the maintenance of fuel injectors. Whether it's cleaning or testing, this tool ensures your vehicle's fuel system operates efficiently, helping to resolve issues like poor starting, sluggish acceleration, and high fuel consumption.

• Extended Reach and Built-in Safety: With its 20-foot extension cable and durable design, the GT101 offers unmatched accessibility for working on large vehicles. Its built-in 10-amp circuit breaker safeguards against overloading, enhancing both the safety and longevity of the tool. The device also features reverse current protection and auto-tripping at currents above 20A.

• Advanced Vehicle Diagnostic Tools: The GT101 integrates advanced diagnostic technologies and robust construction, making it an essential tool for both professional mechanics and automotive enthusiasts. It provides dependable service and precise diagnostics across various vehicle types.

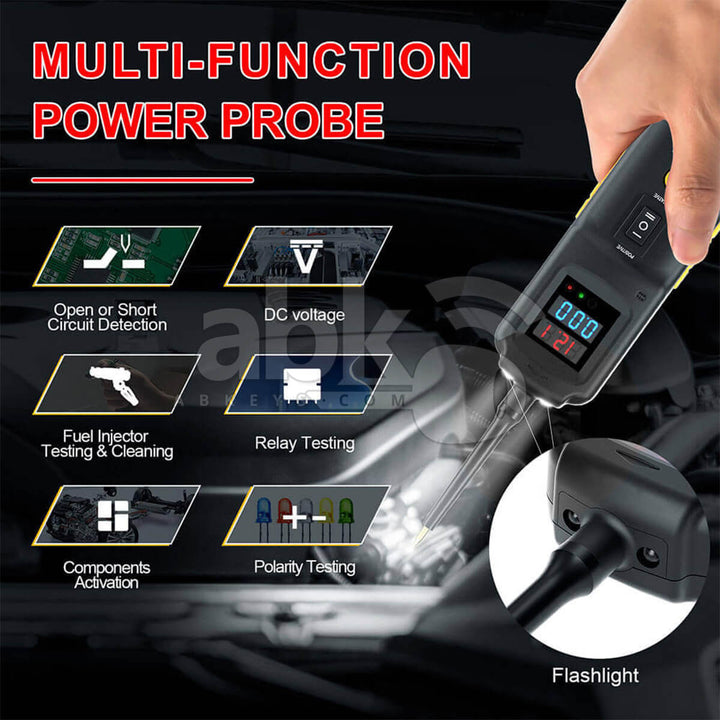

GODIAG GT101 PIRT Power Probe Functions:

1. Circuit Troubleshooting Test: Diagnoses open circuits, short circuits, and provides power to faulty components to determine if the issue is in the circuit or the component.
2. Relay Testing: Tests relays to verify functionality when vehicle components fail (e.g., headlights, horns).
3. Fuel Injector Testing: Checks fuel injector functionality when vehicle issues like poor acceleration or high fuel consumption arise.
4. Fuel Injector Cleaning: Cleans fuel injectors to restore smooth operation and optimal fuel flow.
5. Wire Piercing Probe Support: Allows non-invasive testing of wire connections without damaging the insulation.

How To Use The GODIAG GT101 4-in-1 Tester Power Probe:

• Powering the Device:
  • Connect the GODIAG GT101 to the vehicle’s battery using the included clip to provide power for testing and diagnostics.
• Circuit Testing:
  • Use the probe to check for voltage, ground, and continuity in circuits. You can inject power into the component using the probe to test its functionality.
  • Identify whether the circuit issue is caused by the component or a break in the circuit.
• Relay Testing:
  • Remove the vehicle’s relay and connect it to the GODIAG GT101 using the relay test adapter.
  • Check the display for relay status and functionality.
• Fuel Injector Testing:
  • Attach the fuel injector test lead to the injector, then run a test to see if the injector is functioning correctly.
  • Monitor the ammeter to ensure the injector is opening and closing as expected.
• Fuel Injector Cleaning:
  • Attach the appropriate cleaning connector (10mm or 12mm) to the fuel injector.
  • Use a pressurized cleaning can to remove debris from the injector. Ensure you are working in a safe, well-ventilated environment.
• Using the Wire Piercing Probe:
  • Secure the wire with the spring clip and adjust the red knob for a firm grip.
  • Use the GODIAG GT101 to test the wire for current or voltage.
• Using the Flashlight:
  • Press the flashlight button to illuminate dark work areas for better visibility during testing.

GODIAG GT101 Power Probe VS Other Testers:

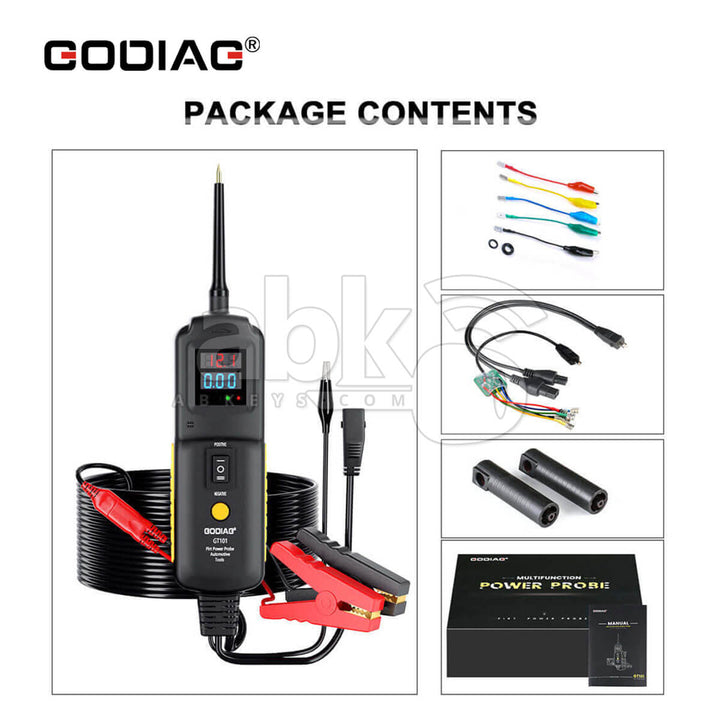

GODIAG GT101 PIRT Power Probe Box Contains:

• 1 x Main Unit of GODIAG GT101 PIRT Power Probe
• 1 x Clip to Connect Battery
• 1 x Probe
• 1 x Probe Cap
• 1 x Fuel Injector Test Lead
• 1 x 10mm Fuel Injector Cleaning Connector
• 1 x 12mm Fuel Injector Cleaning Connector
• 1 x Simple Relay Test Adapter
• 5 x Simple Relay Connection Leads
• 1 x English Manual

GODIAG GT101 4-in-1 Tester Frequently Asked Questions:

• What is the GODIAG GT101 used for?

  • The GODIAG GT101 is a 4-in-1 diagnostic tool used for circuit testing, relay testing, fuel injector cleaning, and fuel injector testing in vehicles with 6-40V electrical systems.

• What vehicles are compatible with the GODIAG GT101?

  • It works with all vehicles operating between 6-40V, including cars, trucks, buses, and even boats.

• How do I use the GT101 for relay testing?

  • Remove the vehicle’s relay, connect it to the GT101 via the relay test adapter, and check the display to verify if the relay is functioning correctly.

• Can the GODIAG GT101 clean fuel injectors?

  • Yes, it comes with specialized connectors (10mm and 12mm) for cleaning fuel injectors by using a pressurized cleaning can.

• How long is the extension cable on the GT101?

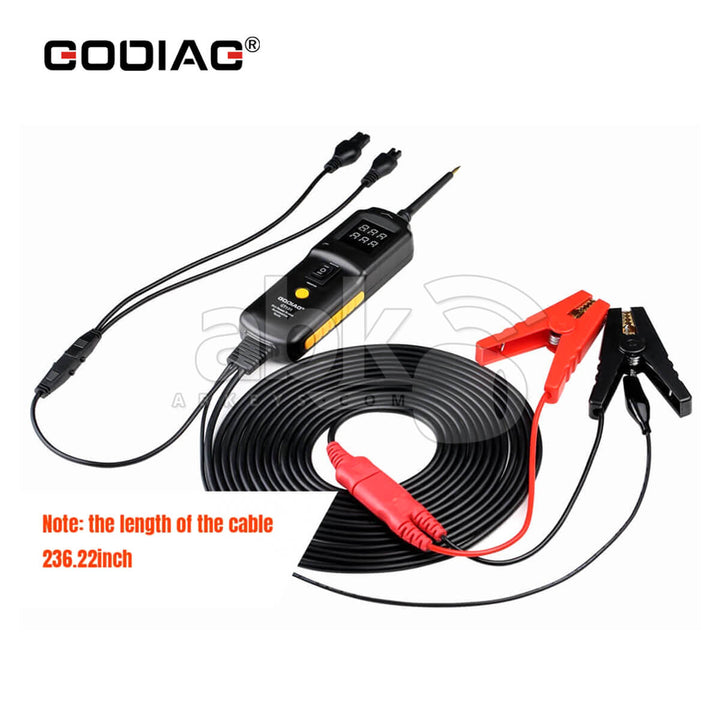

  • The GODIAG GT101 comes with a 20-foot extension cable, providing extra reach when working on larger vehicles.

• How does the GT101 help in fuel injector testing?

  • It monitors fuel injector functionality by checking if the injector is opening and closing properly, preventing issues like sluggish acceleration and high fuel consumption.

• What is included in the GODIAG GT101 package?

  • The package includes the main unit, probe, probe cap, battery clips, fuel injector test leads, cleaning connectors (10mm and 12mm), a relay test adapter, and relay connection leads.

• Does the GT101 have a built-in ammeter?

  • Yes, the ammeter helps monitor current during tests like fuel injector functionality.

GODIAG GT101 4 in one DC 6-40V Circuit Tester Power Probe Relay Tester

Specifications:

Item Specifications:

• Product Code: ABK-523
• Manufacturer: GoDiag [Genuine]
