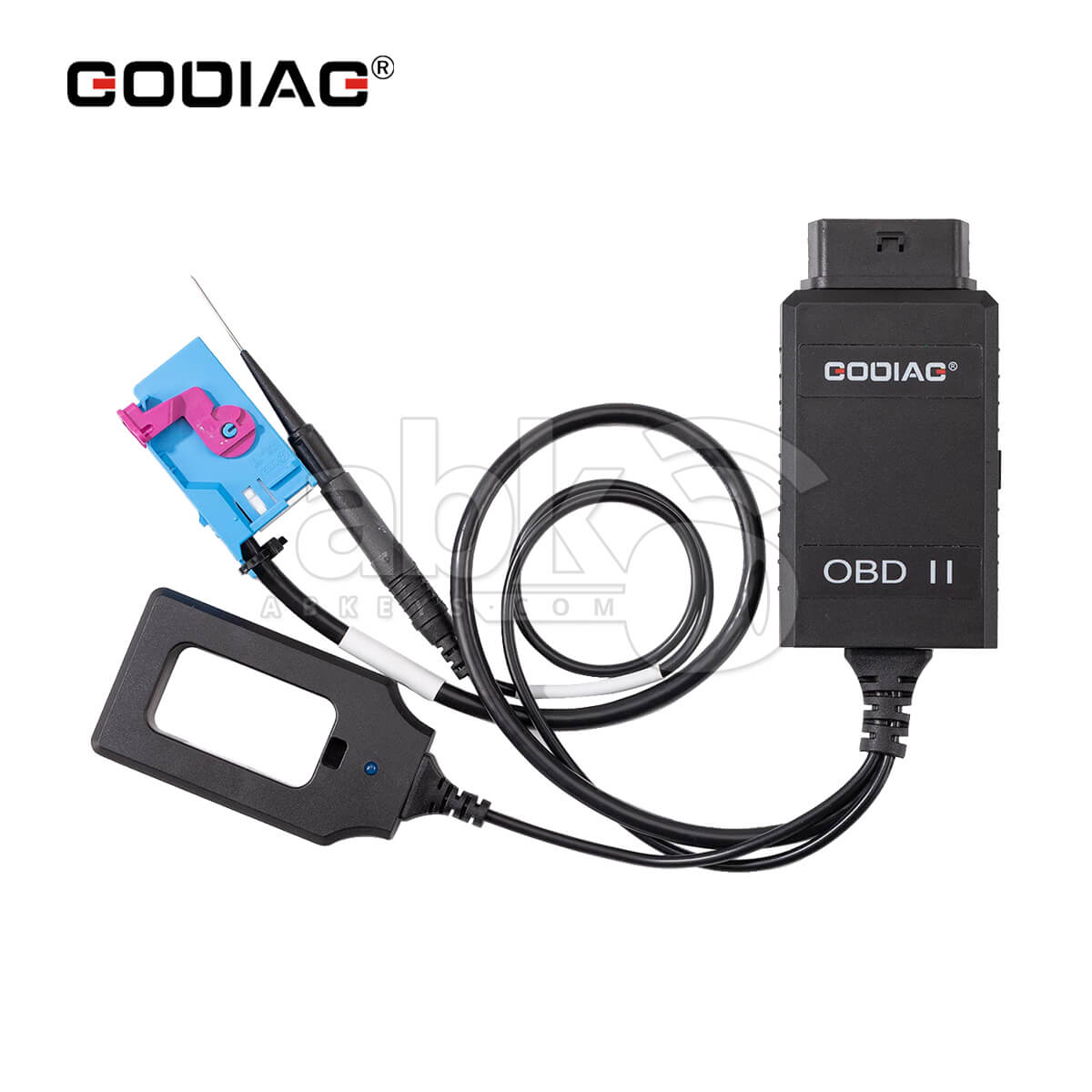

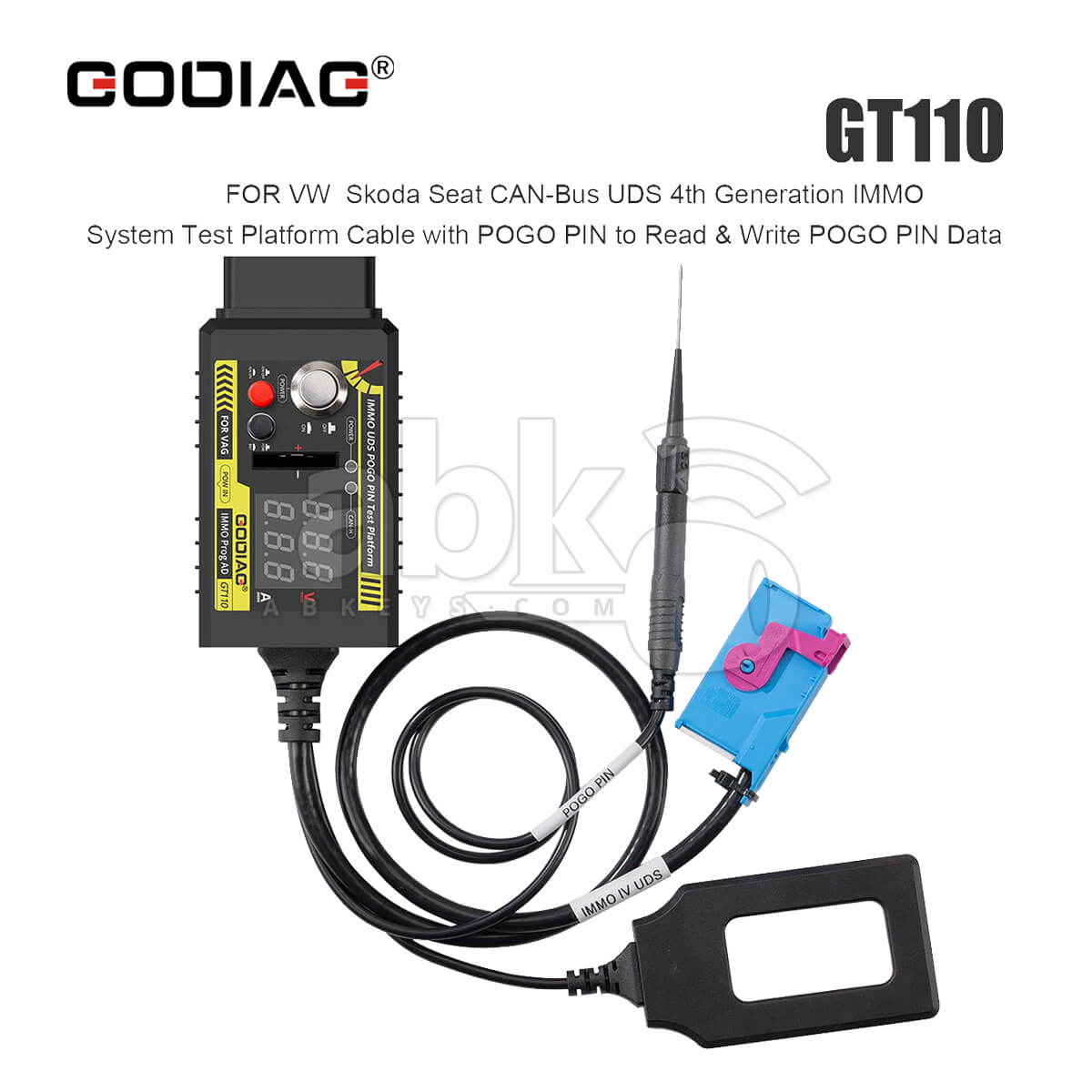

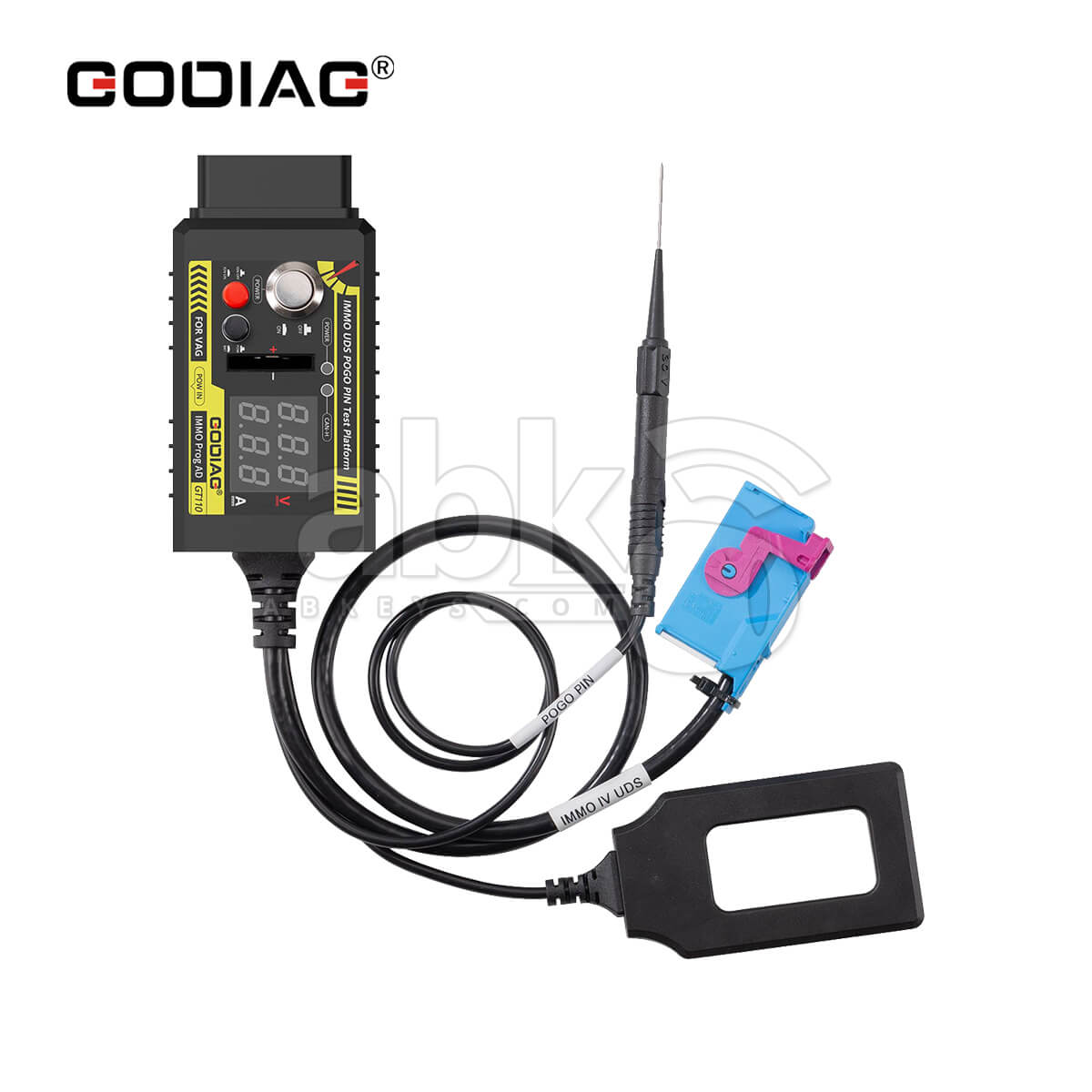

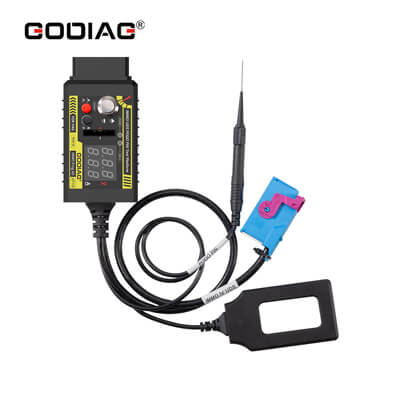

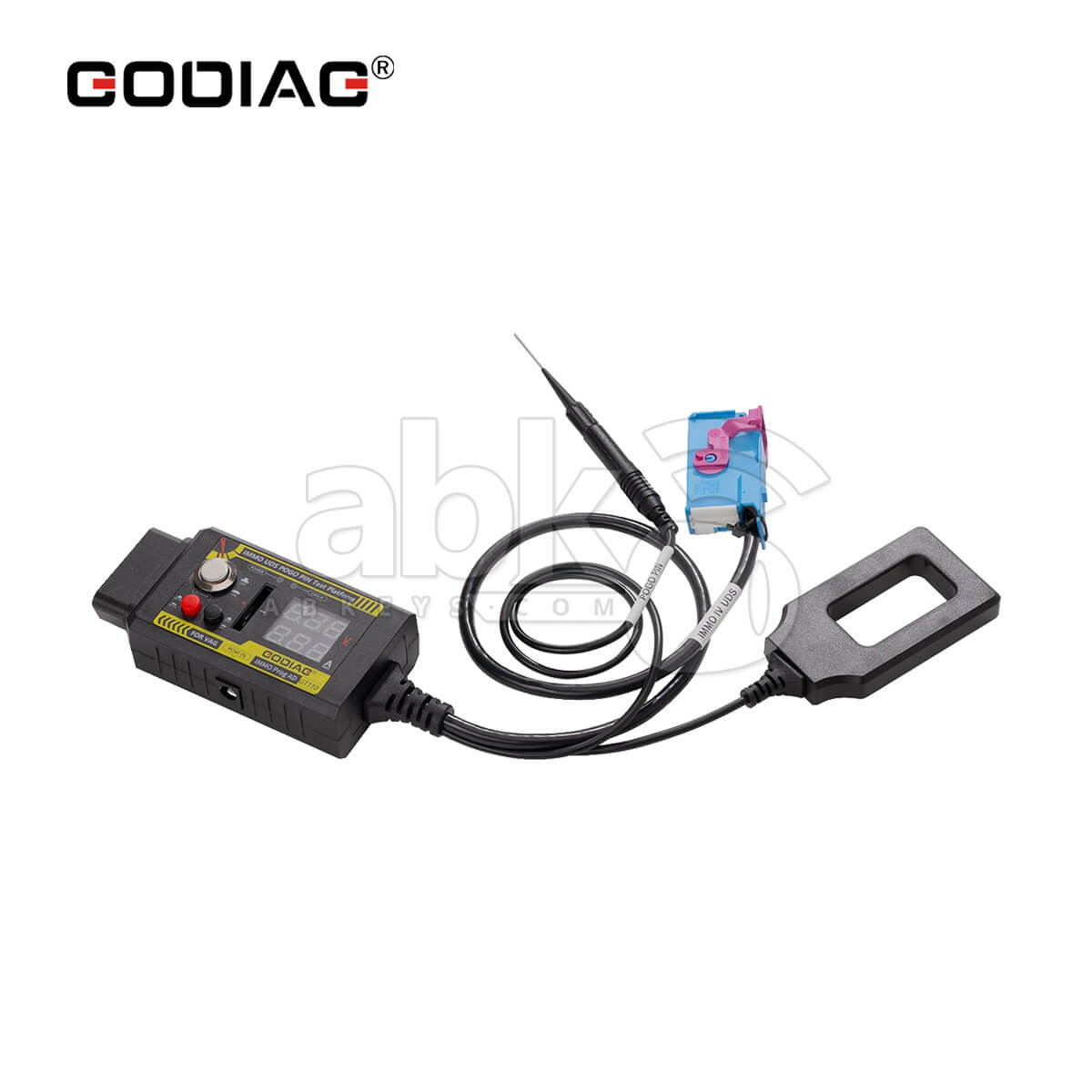

GODIAG GT110 VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write Data

GODIAG GT110 VAG CAN-Bus UDS 4th Generation IMMO System Test Platform Cable Overview:

GODIAG GT110 supports VW Skoda Seat and other models, and performs offline POGO PIN data reading and writing. It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.

What Does It Do & What Makes It Unique?

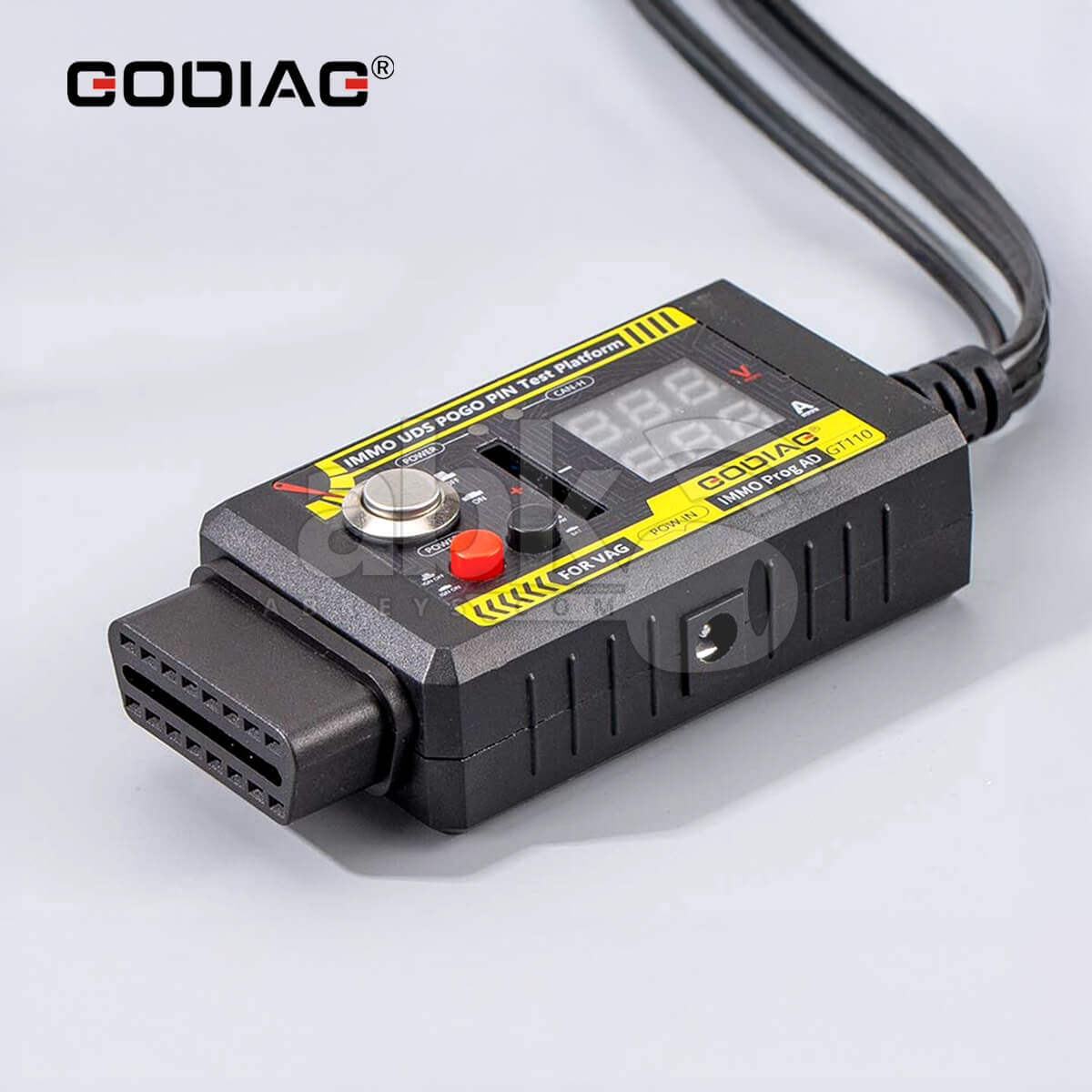

GODIAG GT110 is designed for dashboards key programming, including Boot Probe, of all UDS systems of Volkswagen, Skoda, and Seat. The product can display the current working voltage and current, has a power switch, a simulated ignition switch, and a buzzer to indicate ignition start and shutdown.

Reasons to Choose The GODIAG GT110 VAG UDS Bench Adapter:

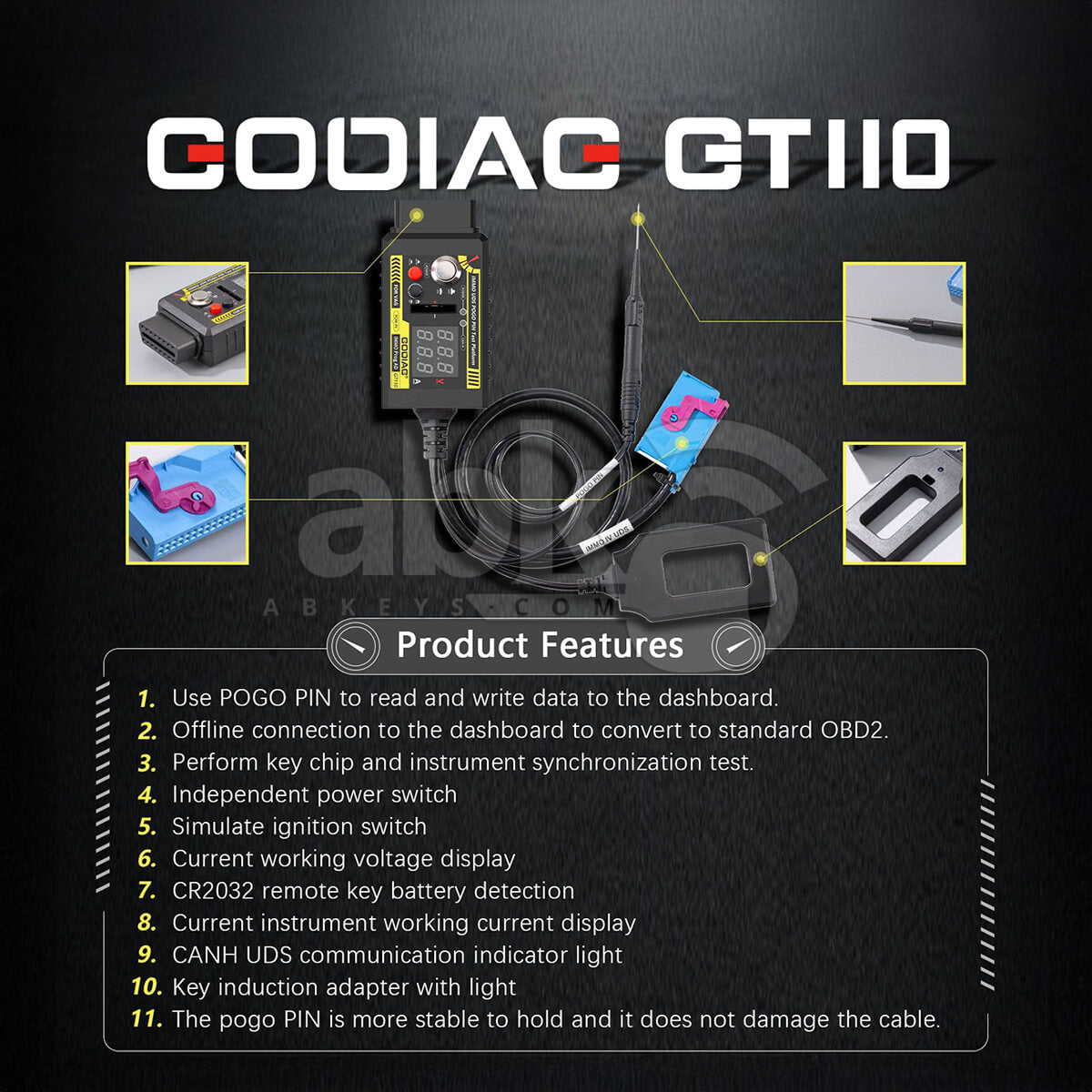

• POGO PIN Data Reading & Writing: Secure and reliable dashboard data access without damage.
• Offline OBD2 Connection: Converts the dashboard to a standard OBD2 connection for easy diagnostics.
• Simulated Ignition Switch: Allows testing ignition operations without using the vehicle's real ignition system.
• CANH UDS Communication Indicator: Monitors the communication status of the vehicle's CAN-Bus system.
• CR2032 Remote Key Battery Detection: Helps verify the battery status of remote keys.
• Key and Instrument Sync Detection: Ensures proper synchronization between the key and the vehicle’s IMMO system.
• Emergency Start Sensing Area Recognition: Identifies emergency start locations for vehicles with smart keys.
• Voltage & Current Display: Provides real-time monitoring of working voltage and current to prevent overloading.
• Durable & Stable POGO PIN: Designed to hold securely while preventing cable damage.

GODIAG GT110 VAG CAN-Bus UDS Test Platform Cable Supported Functions:

• Key Chip and Instrument Synchronization Test
• IMMO Instrument Offline Diagnosis
• Instrument IMMO Data Reading & Writing
• Instrument Mileage Repair
• Key Matching
• Emergency Start Sensing Area Detection

How to Use The GODIAG VAG CAN-Bus UDS Test Platform Cable:

1. Connect the power supply (Ensure the power switch is OFF).
2. Press the IGN ignition power (IGN switch must be ON).
3. Connect the instrument plug.
4. Locate the corresponding POGO PIN connection point and connect with a probe.
5. Turn on the power switch for 3-5 seconds. If the ABS light flashes, the POGO PIN read/write mode is active.

GODIAG GT110 VS Other VAG UDS Cables:

GODIAG GT110 VAG UDS Bench Cable Test Result Analysis:

• Key identifier light flashes and then goes out: IMMO chip and chip key are working correctly.
• Key identifier light flashes for a long time: Chip key and vehicle IMMO system do not match and require re-matching.
• Key identifier light does not flash: Possible fault in the vehicle's IMMO system.

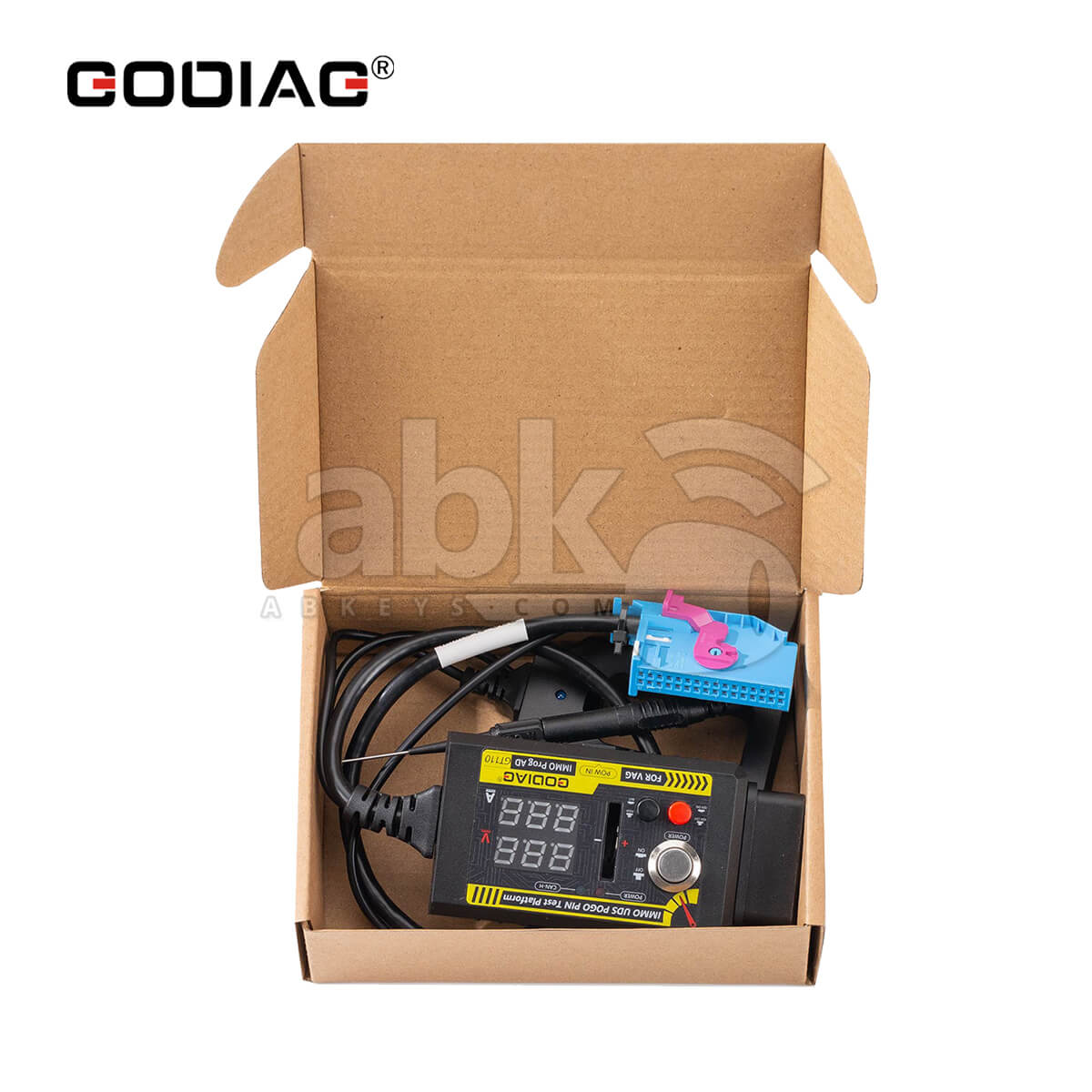

GODIAG VAG CAN-BUS / UDS Bench Cable Box Contains:

1 x GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN

GODIAG GT110 VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write Data

Specifications:

Supported Models:

Item Specifications:

• Product Code: ABK-400
• Manufacturer: GoDiag [Genuine]

Fitments:

• AUDI ALL MODELS
• SEAT ALL MODELS
• SKODA ALL MODELS
• VOLKSWAGEN ALL MODELS
• ZEDFULL ALL MODELS
