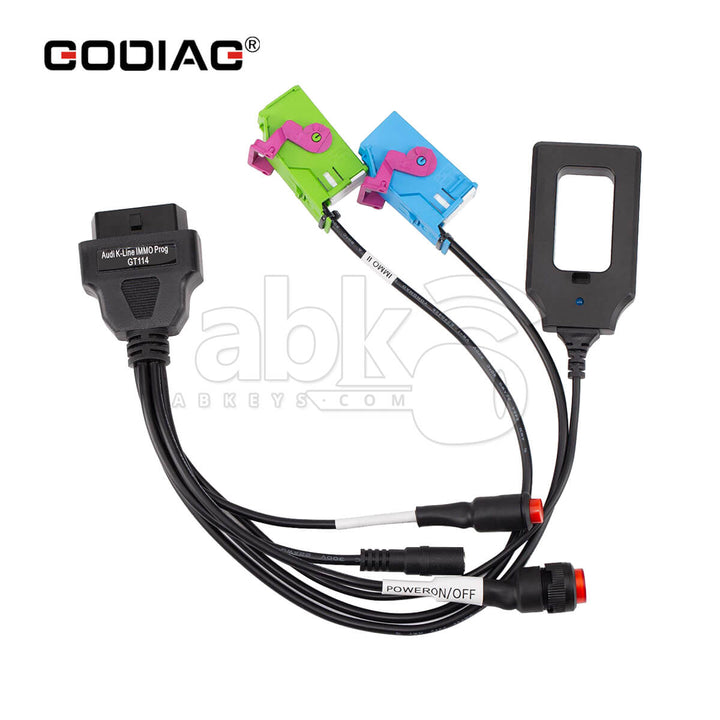

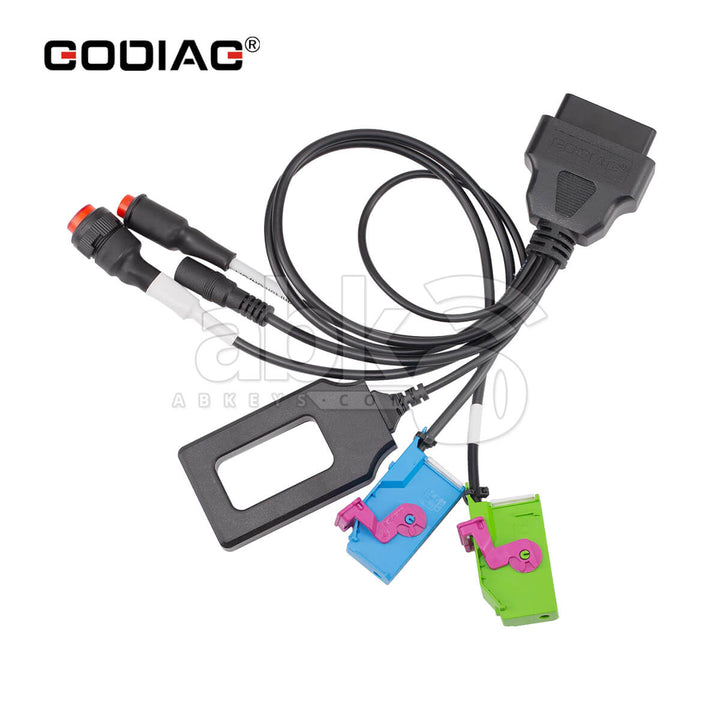

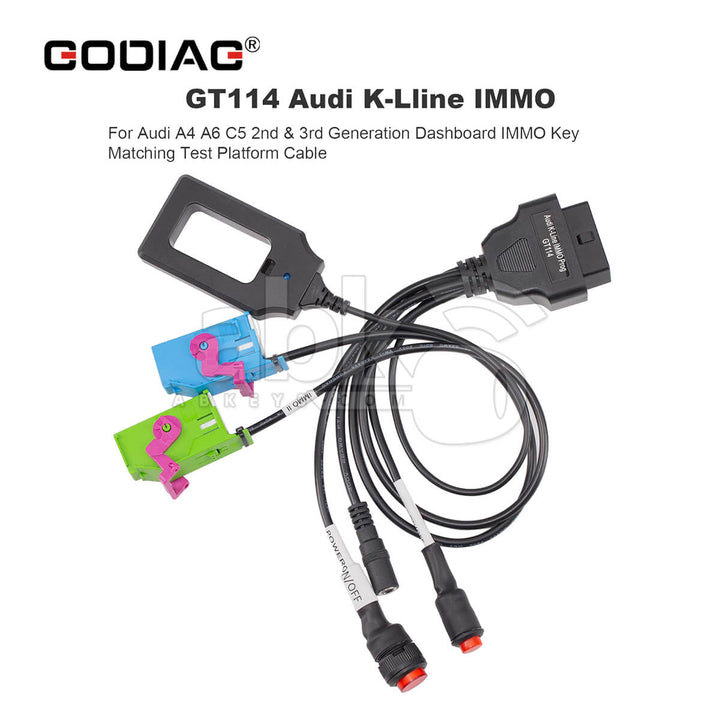

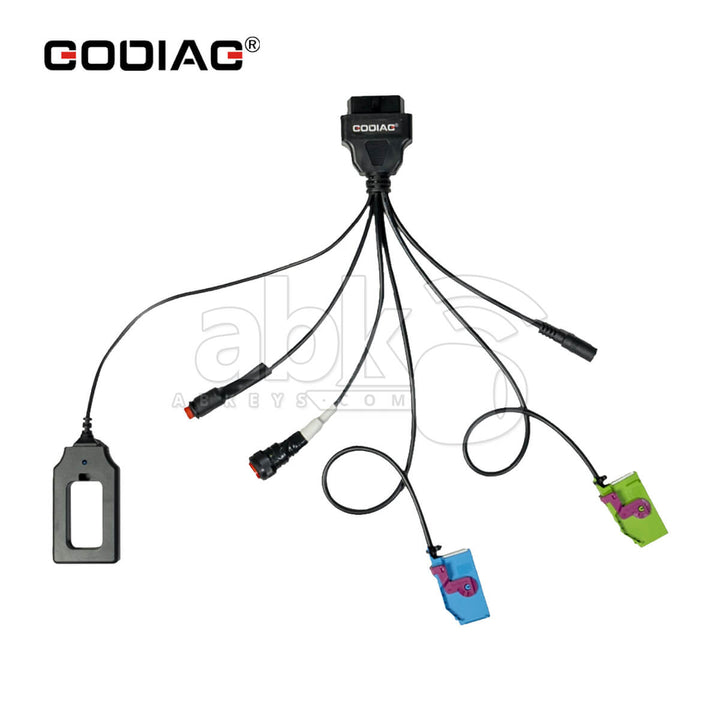

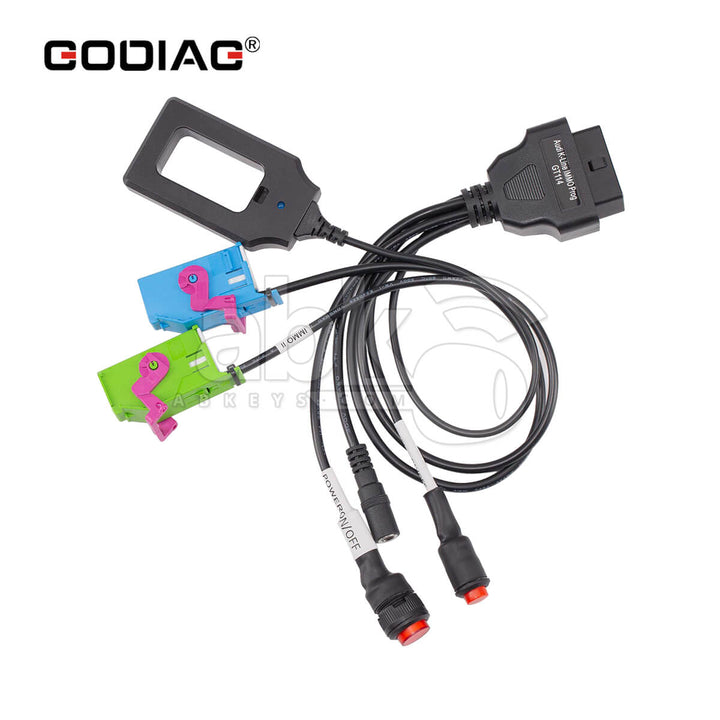

GODIAG GT114 Audi K-Lline IMMO for Audi A4 A6 C5 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable

GODIAG GT114 Audi K-Lline Dashboard Key Programming Cable Overview:

The GODIAG GT114 Audi K-Lline IMMO cable is an essential tool for Audi vehicle owners and automotive locksmiths. This advanced test platform cable enables seamless key matching and IMMO instrument synchronization, making it a must-have for key programming professionals. Designed specifically for Audi A4 and A6 C5 models from 2000 to 2006, this cable ensures accurate and efficient performance for a variety of IMMO-related tasks.

The GODIAG GT114 Audi K-Lline IMMO cable is an indispensable Cable for automotive key programming professionals and vehicle owners. Its high compatibility, offline key synchronization, and advanced diagnostic features make it the ultimate choice for anyone working with Audi A4 & A6 C5 vehicles.

What Does It Do & What Makes It Unique?

The GODIAG GT114 IMMO cable is designed for offline key synchronization and instrument testing. It provides intelligent IMMO system emergency start area detection, allowing users to identify key emergency start locations effortlessly. Unlike conventional diagnostic tools, this cable offers an independent power and ignition switch, giving users complete control over the key programming process. It is highly versatile and compatible with numerous diagnostic tools, making it a unique and essential device for automotive key programming and immobilizer testing.

Why Choose The GODIAG GT114 Audi K-Lline Dashboard Key Programming Cable?

• Specially Designed for Audi A4 & A6 C5 (2000-2006) – Ensures precise and accurate key matching.
• Offline Key Synchronization – Eliminates the need for an online connection for key and IMMO instrument synchronization.
• IMMO System Emergency Start Detection – Identifies the emergency start sensing area with ease.
• Independent Power & Ignition Switch – Provides full control over the testing process.
• Multi-Device Compatibility – Works with HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, and more.

• Reliable and Durable Build – Ensures long-term usability and high performance.

GODIAG Audi 2nd & 3rd Generation Dashboard Cable Full Features:

1. Offline connection to the dashboard, converting it to standard OBD2.
2. Enables key chip and instrument synchronization tests.
3. Independent power switch for enhanced user control.
4. Dedicated ignition switch for convenient testing.
5. Key induction adapter equipped with a light indicator.

GODIAG Audi Dashboard IMMO Key Matching Test Platform Cable Supported Functions:

• IMMO dashboard offline diagnosis – Reads and writes IMMO instrument data.
• Instrument mileage repair – Adjusts and corrects mileage data.
• Key matching and learning – Synchronizes new and existing keys with the vehicle.
• Emergency start area sensing detection – Identifies the key start sensing location.
• Chip key working status detection – Verifies if the IMMO chip and key are functioning correctly.
• Fault detection – Identifies potential issues in the vehicle’s IMMO system.

Instructions on How to Use The GODIAG Audi K-Line:

1. Connect the GODIAG GT114 IMMO cable to the vehicle’s dashboard via the OBD2 port.
2. Power on the device using the independent power switch.
3. Turn on the ignition switch for testing.
4. Perform key matching and IMMO synchronization using supported diagnostic tools.
5. For emergency start detection, press the vehicle’s start switch and bring the key identifier close to the suspected area.

6. Analyze the key identifier light:

• If the light flashes and turns off, the chip key is working properly.
• If the light flashes for a long time, the chip key does not match the vehicle.
• If the light does not flash at all, the vehicle’s IMMO system may have a fault.
• Follow the on-screen instructions from your diagnostic tool to complete the key programming and synchronization process.

Tips for Audi A6 C5 Transponder Key Matching Process:

• Ensure you use a Megamos ID 48 key (Xhorse Super Chip is not supported).
• Write back the generated IMMO instrument data and perform a matching learning process.
• Keep a record of the PIN code, as it is needed for future programming.
• Follow the on-screen prompts carefully, ensuring correct ignition signals during learning.
• Pay attention to the time intervals (e.g., waiting 5 seconds or 2 seconds when required).

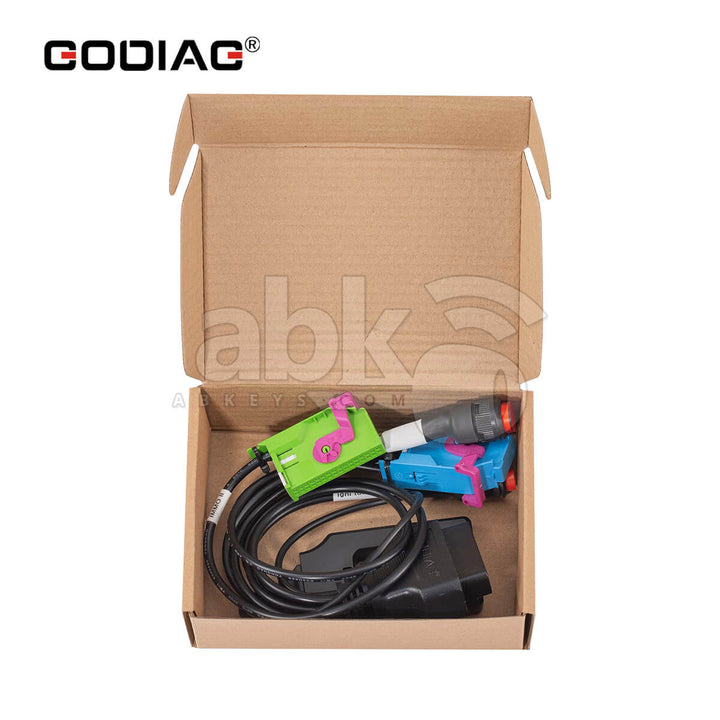

GODIAG GT114 Audi K-Lline Dashboard IMMO Key Matching Test Platform Cable Box Contains:

• 1 Pcs of GODIAG Audi K-Lline Immobilizer Dashboard Key Matching Cable

GODIAG GT114 Audi K-Lline Dashboard Key Bench Programming Cable Frequently Asked Questions:

• What vehicles are compatible with the GODIAG GT114 Audi K-Line IMMO cable?

  • Works with Audi A4 and A6 C5 models (2000-2006) using the K-Line protocol.

• Can this cable be used for key programming without an internet connection?

  • Yes, it supports offline key synchronization, eliminating the need for an internet connection.

• Which diagnostic tools are compatible with the GODIAG GT114?

  • Compatible with HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, AUTEL, and more.

• Can this cable be used to adjust mileage on Audi dashboards?

  • Yes, it supports instrument mileage repair and correction.

GODIAG GT114 Audi K-Lline IMMO for Audi A4 A6 C5 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable

Specifications:

Supported Models:

Item Specifications:

• Product Code: ABK-398
• Manufacturer: GoDiag [Genuine]

Fitments:

• AUDI A4 1998-2006
• AUDI A5 1998-2006
• AUDI A6 1998-2006
