KeyDiy KD-X4 KDX4 Key Programmer & Remote Generator OBD Key Programmer

KEYDIY KD-X4 Locksmith's Universal Tool Overview:

KEYDIY KD-X4 is an advanced locksmith tool designed for professionals. It combines functionalities like key recognition, generation, copying, programming, and matching into one device. With options for standalone use or connectivity with tablets, smartphones, or PCs, locksmiths can tailor the device to their workflow preferences.

What Does The KEYDIY KD-X4 Key Programmer Do?

The KEYDIY KD-X4 is an all-in-one locksmith solution that allows users to generate, copy, program, and simulate various remote controls and transponder chips. It supports a broad range of key-related operations, including unlocking used keys, detecting key frequencies, and programming immobilizers for different car brands. Whether working independently or connected to a PC, tablet, or smartphone, the KD-X4 adapts to various working environments, making it an indispensable tool for automotive key programming and repair tasks.

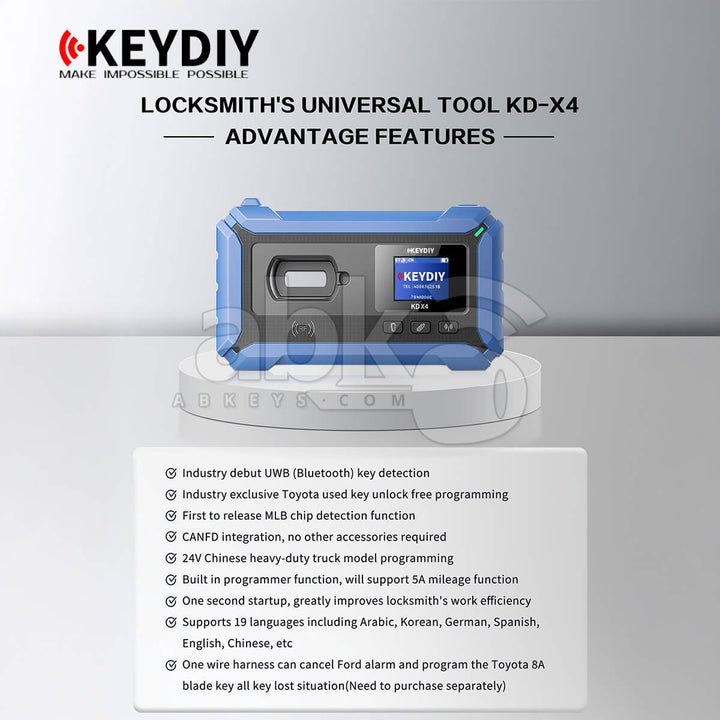

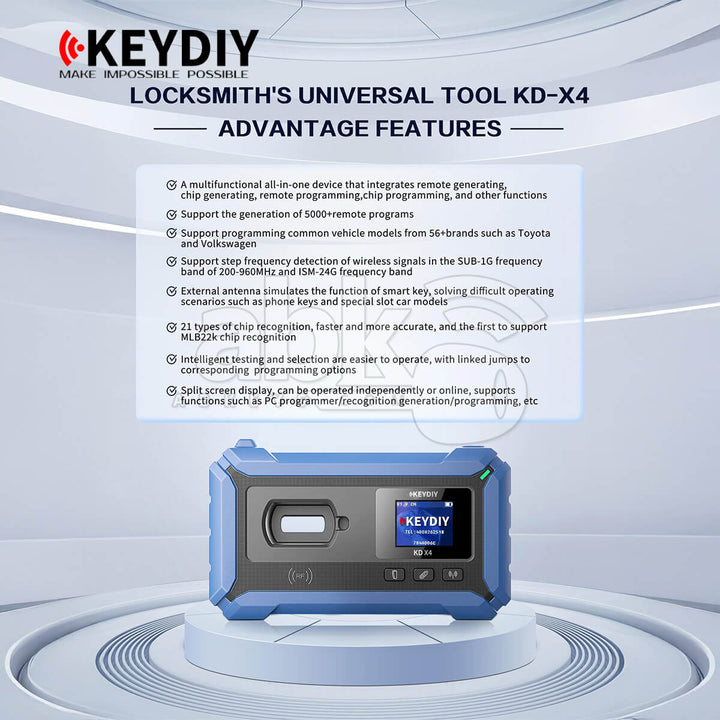

KEYDIY KD-X4 Universal Key Programmer Features:

• Industry Debut UWB (Bluetooth) Key Detection : Detects Bluetooth-enabled car keys with precision.
• Toyota Used Key Unlock-Free Programming : Exclusive feature for programming Toyota used keys without unlocking.
• MLB Chip Detection Function : First-to-market technology for detecting MLB chips.
• CANFD Integration : No additional accessories required for advanced diagnostics.
• 24V Chinese Heavy-Duty Truck Model Programming : Supports heavy-duty truck key programming.
• Built-In Programmer Function : Future support for 5A mileage programming.
• One-Second Startup : Boosts efficiency by reducing startup time significantly.
• Multilingual Support : Available in 19 languages, including Arabic, Korean, German, Spanish, English, and Chinese.
• Ford Alarm Cancellation & Toyota 8A Blade Key Programming : One wire harness handles both tasks (requires separate purchase).

KEYDIY KD-X4 Universal Key Programmer Supported Functions:

• Remote Generation : Supports 5600+ remote control program generations.
• Toyota Rollin-Code Bypass + MQB Key Programming : For 2019+ Toyota models.
• Remote Copying : Compatible with 50+ car models.
• Key Simulation : Simulates remote controls and smart keys.
• Frequency Detection : Detects 315M, 433M, 467M, 868M, 902M, and 2.4G frequencies.
• Anti-Theft Chip Recognition : Supports MLB, 5C, 46, 47, 48, MOB48, 4D, 4C, 8A, 6A, 4A, 8E, 8C, 13, 11, 12, 7935X, 49, 33/40-44 AUDI5 ID card IC card.
• Specialized Chip Generation : Generates Toyota G, NB multifunctional, 30/40-44, 48, 4D/4C, Toyota 8A/H, and 46 specialized chips.
• Chip Acquisition : Supports device acquisition antenna, external acquisition antenna, and built-in acquisition enhancer for BYD all-key-lost scenarios, OBD 48, and more.
• Key Unlocking : Works with 36 different brand keys.
• Battery Voltage Detection : Tests 3V remote key battery voltage.
• Key Leakage Detection : Identifies 3V remote control key leakage.
• Second-Hand Remote Programming Without Unlocking : Supports Toyota/Lexus 8A-AA, BA, 4A-type used key unlock-free programming.
• Immo Programming : Compatible with 51+ brands, with continuous updates.
• Programmer Function : Reads immo data from Volkswagen Audi MQB dashboards.

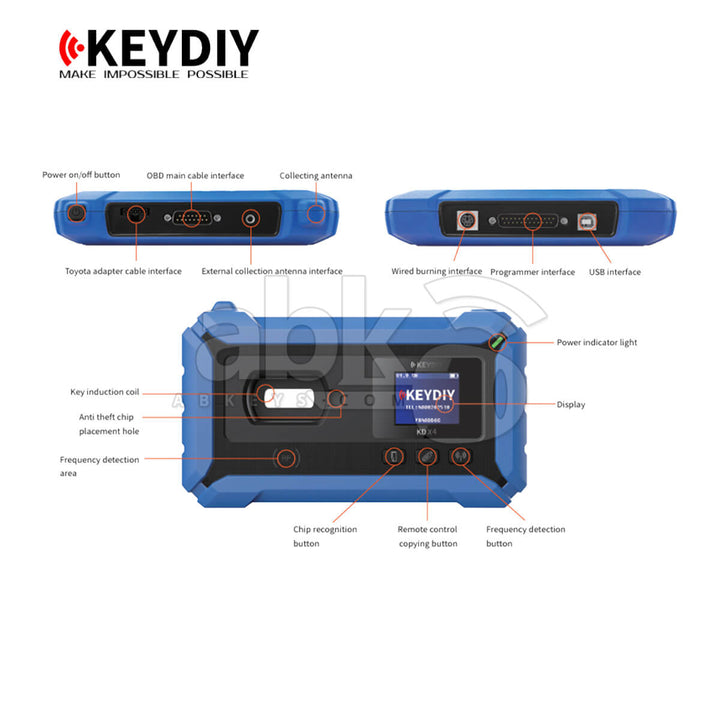

How To Use The KEYDIY KD-X4 Universal Key Programmer:

Using the KEYDIY KD-X4 is straightforward and user-friendly. Follow these steps to get started:

• Power On/Off :
  • To turn on: Press and hold the power button for 2 seconds.
  • To turn off: Press and hold the power button for 2 seconds when the device is on.
• Chip Recognition :
  • Press the chip recognition button to detect IMMO chips.
  • Long press to access the function-switching menu and choose between Chip Recognition, Ignition Coil Detection, or System Settings.
• Remote Copying :
  • Press the remote copy button for normal copying.
  • Long press to access options like Normal Copy, Special Copy, or Remote Data Comparison.
• Frequency Detection :
  • Press the frequency detection button for 315MHz detection.
  • Long press to switch between 315MHz, 433.92MHz, or Battery Voltage/Leakage Detection modes.
• Using the Key Induction Coil :
  • Place the car key in the induction coil hole to identify and copy IMMO chips or generate KD remotes wirelessly.
• Detecting Frequencies :
  • Place the key in the frequency detection area and press the remote control button to detect its frequency.
• Charging the Device :
  • Connect the USB cable to the USB interface for charging or wired connections to mobile phones or PCs.
• Advanced Programming :
  • Use the programmer interface to read data from Volkswagen MQB dashboards, Audi dashboards, BCM data, and octagonal chip EEPROMs.
  • Utilize the OBD main cable interface for programming functions via the Mobile KD App.

KEYDIY KD-X4 Key Programmer Product Parameters:

• Battery Capacity : 3.7V, 2000mAh
• Input Power : 5V/9V/12V, 2A
• Size : 150 x 85 x 30 mm
• Working Temperature : -10°C to 50°C
• Connectivity : BLE, USB 2.0 (Type B)
• Display : 2.8-inch color screen
• Storage Temperature : -20°C to 60°C

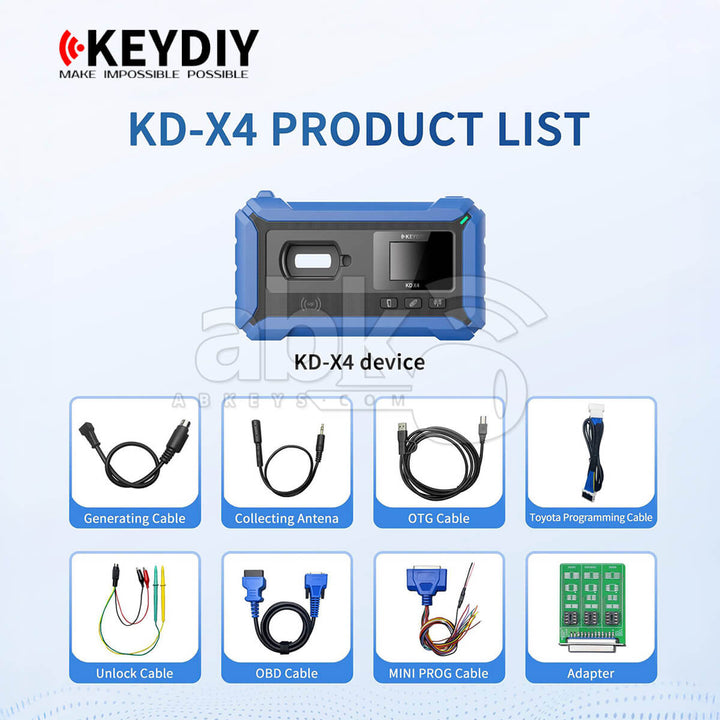

KEYDIY KD-X4 Key Programmer Box Contains:

• KD-X4 Device
• OBD Main Cable
• USB Cable
• Toyota Adapter Cable
• Programmer Adapter Board
• Programmer Wiring Cable
• Remote Control Burning Cable
• Key Unlocking Cable
• External Acquisition Antenna

KEYDIY KD-X4 Key Programmer Frequently Asked Questions:

• What is the KEYDIY KD-X4, and what does it do?

  • The KEYDIY KD-X4 is an advanced locksmith tool designed for automotive key programming and repair tasks. It combines functionalities such as key recognition, generation, copying, programming, and matching into one device. It supports over 5600 remote control program generations, frequency detection, chip recognition, and immobilizer programming for various car brands.

• Which car models and brands does the KEYDIY KD-X4 support?

  • The KD-X4 supports over 51+ car brands, including Toyota, Lexus, Ford, Volkswagen, Audi, and more. It also provides specialized functions like Toyota Rollin-Code Bypass and MQB key programming for 2019+ Toyota models.

• Can the KD-X4 unlock and reprogram used car keys?

  • Yes, the KD-X4 supports unlocking used keys, including Toyota 8A, 4A, and other transponder types, allowing them to be reprogrammed for another vehicle.

• Does the KD-X4 support key programming for heavy-duty trucks?

  • Yes, the KD-X4 includes 24V Chinese heavy-duty truck key programming, making it compatible with commercial vehicles.

• What languages does the KEYDIY KD-X4 support?

  • The KD-X4 offers multilingual support in 19 languages, including Arabic, Korean, German, Spanish, English, and Chinese, making it accessible to users worldwide.

• What is included in the KD-X4 package?

  • The KEYDIY KD-X4 box contains the KD-X4 device, OBD main cable, USB cable, Toyota adapter cable, programmer adapter board, programmer wiring cable, remote control burning cable, key unlocking cable, and an external acquisition antenna.

KeyDiy KD-X4 KDX4 Key Programmer & Remote Generator OBD Key Programmer

Specifications:

Item Specifications:

• Product Code: ABK-5500
• Manufacturer: KeyDiy [Genuine]
