Orange5 Programmer - Work Set With Full Adapters / Wires

Name: Orange5 Programmer - Work Set With Full Adapters / Wires
Brand: Scorpio
SKU: ABK-2466-2-WORK
Price: 835.0 USD
Availability: InStock

Product SKU: ABK-2466-2-WORK

Category: IC Programmers & Accessories,Scorpio LK

Vendor: Scorpio

Available:

In stock

Out of stock

Pre-order

$835.00

Description
Software

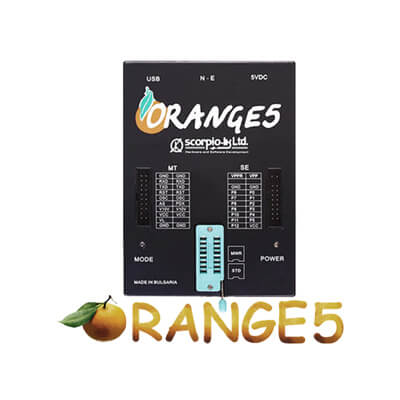

Orange5 Programmer overview:

Orange5 is a professional programming device for memory and microcontrollers.

Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.

It has Basic Software with 6 Adapters & Connection Wires included please check them under the Adapters List Tab

Technical Specs:

USB power supply (USB2.0/3.0)
Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets
Two expansions compatible with Orange4 and Omega MTRK
Protection against overcurrent
Overload voltage protection
Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V)
Additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( up to 24 MHz) and out voltage(2.0...5.0V) adjustment.
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2?, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Programmer is enclosed in a functional box
Supported OS: Windows XP / 7 / 8
