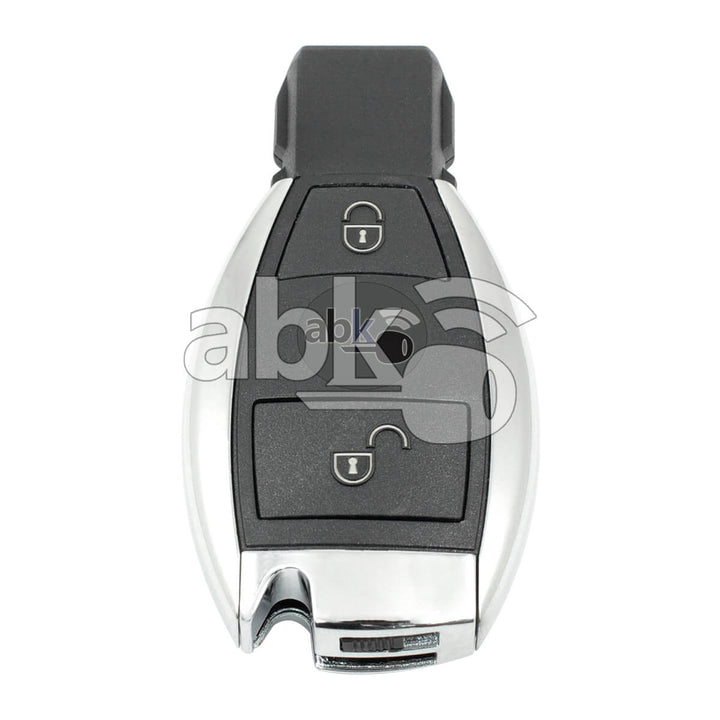

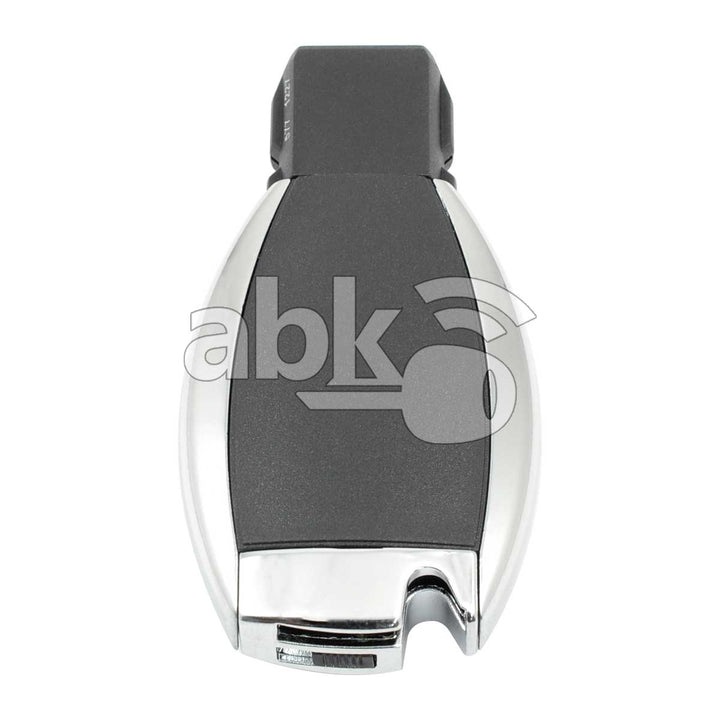

Xhorse Mercedes Benz FBS3 Smart key With Keyless Go 2Buttons 315MHz - 433MHz W204 W212 W164 W221

Xhorse Mercedes Benz FBS3 Keyless Go Smart key Overview:

The Xhorse FBS3 is the best option to program Mercedes Benz keyless go smart key with wide supported models and easy programming procedures

Xhorse Mercedes Keyless Go key Main features:

• Mercedes FBS3 keyless go remote doesn't need battery insertion for Mercedes key data writing by infrared
• MB keyless go remote Support exchange frequency 433/315MHz
• Mercedes Benz Keyless go remote can be renewed & programmed several times
• Mercedes Benz FBS3 smart key has high & stable quality
• Mercedes Benz FBS3 keyless go key is compatible with multi Benz key programmers
• the first time you program the Mercedes keyless go board using VVDI Mercedes you get free 200 bonus points (can be exchanged to 1 token for Xhorse VVDI MB)

How to Program The Xhorse VVDI MB FBS3 Smart Key:

Xhorse Mercedes Smart key programming is the same as normal Mercedes BE key programming
but the key version to loaded to the Smart key must be version 51 type, after Xhorse FBS3 keyless go programming it will work the same as OEM Mercedes FBS3 keyless entry key function.

How to exchange Mercedes FBS3 smart key frequency between 315MHz and 433MHz

Mercedes FBS3 Push-button start smart key frequency can be changed in two methods
Method 1:

Using VVDI Mercedes software
press "other function" Button
Press "Set key remote frequency / Update MB smart key" Button

Method 2:

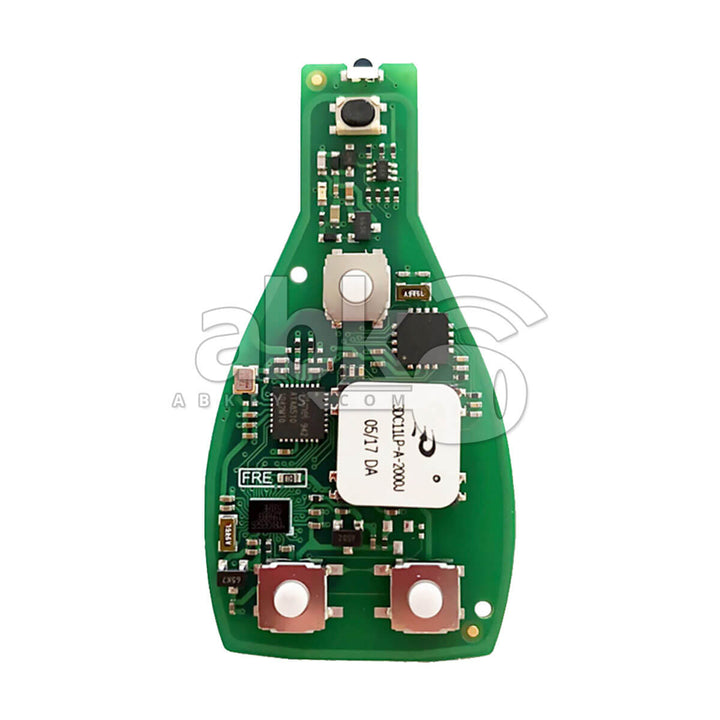

You can change MB smart key frequency by desoldering the FRE resistor (marked red in the picture below)

Xhorse VVDI Benz Smart Key Supported Models:

• Mercedes Benz W221 S series Keyless entry
• Mercedes Benz W216 S series Keyless entry
• Mercedes Benz W164 ML series Keyless entry
• Mercedes Benz W164 GL series Keyless entry
• Mercedes Benz W251 R series Keyless entry
• Mercedes Benz W166 ML series Keyless entry
• Mercedes Benz W212 E series Keyless entry
• Mercedes Benz W207 C series Keyless entry
• Mercedes Benz W204 X series Keyless entry

Xhorse Mercedes Benz FBS3 Smart key With Keyless Go 2Buttons 315MHz - 433MHz W204 W212 W164 W221

Specifications:

Product Code	ABK-4848-2B
Manufacturer	Xhorse [Genuine]
Buttons Count	2Buttons
Frequency	315MHz-433MHz
Key Blade	Optional ABK-1755
Keyless Go	Yes
Color	Black
Battery	CR2025 ABK-540-2025
Condition	Brand New

Supported Models:

BRAND	MODEL	FROM	TO	NOTE
MERCEDES	ALL MODELS	2008	2015
MERCEDES	CLA CLASS	2013	2017
MERCEDES	CLS CLASS	2010	2017
MERCEDES	G CLASS	2012	2018
MERCEDES	G320	2012	2018	W463
MERCEDES	G500	2012	2018	W463
MERCEDES	G55	2012	2018	W463
MERCEDES	G63	2012	2018	W463
MERCEDES	GL CLASS	2012	2018
MERCEDES	ML CLASS	2012	2018
MERCEDES	ML250	2012	2015	W166
MERCEDES	ML350	2012	2015	W166
MERCEDES	ML400	2015	2018	W166
MERCEDES	ML550	2012	2014	W166
XHORSE	ALL MODELS

Item Specifications:

• Product Code: ABK-4848-2B
• Manufacturer: Xhorse [Genuine]
• Buttons Count: 2Buttons
• Frequency: 315MHz-433MHz
• Key Blade: Optional ABK-1755
• Keyless Go / Proximity / Smart Function: Yes
• Color: Black
• Battery: CR2025 ABK-540-2025

Fitments:

• MERCEDES ALL MODELS 2008-2015
• MERCEDES CLA CLASS 2013-2017
• MERCEDES CLS CLASS 2010-2017
• MERCEDES G CLASS 2012-2018
• MERCEDES G320 2012-2018
• MERCEDES G500 2012-2018
• MERCEDES G55 2012-2018
• MERCEDES G63 2012-2018
• MERCEDES GL CLASS 2012-2018
• MERCEDES ML CLASS 2012-2018
• MERCEDES ML250 2012-2015
• MERCEDES ML350 2012-2015
• MERCEDES ML400 2015-2018
• MERCEDES ML550 2012-2014
• XHORSE ALL MODELS

Note: No returns or refunds on smart keys and remotes. Please confirm compatibility before purchasing
