Scorpio Barracuda Key Programmer & Remote Renewal Tool

Barracuda Key Programmer Overview:

Scorpio-LK's Barracuda programmer is a new platform designed to complement the Tango programmer, providing solid solutions for locksmiths and users in the automotive repair and maintenance industry. This device is the most powerful device in the world for remote and smart key unlocking and recycling.

The Scorpio LK Barracuda programmer is a long-term project that is similar to Tango. With most of the hardware and software core work complete, we can now focus solely on adding new features to both Tango and Barracuda.

Barracuda Key Programmer Main Functions:

• Scorpio Barracuda unlocks a wide range of used smart keys & remotes
• Scorpio Barracuda has a continuous and free update
• Scorpio Barracuda supports more than 196 remote & smart key
• Scorpio Barracuda doesn't require tokens
• Scorpio Barracuda software has an easy step to step diagram
• Scorpio Barracuda VAG dashboard calibration & Scorpio Barracuda VAG key programming for VAG MQB system
• Scorpio Barracuda programming all key lost for Toyota H with the help of Tango Key Programmer ABK-2087

Barracuda programmer Supported Remote Control & smart key unlocking until version7:

1. Scorpio Barracuda renew Alfa Romeo smart Key
2. Scorpio Barracuda renew Audi smart key without a keyless go
3. Scorpio Barracuda renew Audi smart key with keyless go
4. Scorpio Barracuda renew BMW E Series smart key
5. Scorpio Barracuda renew BMW F Series smart key
6. Scorpio Barracuda renew BMW G Series smart key
7. Scorpio Barracuda renew BMW Chinese smart key
8. Scorpio Barracuda renew Cadillac smart key
9. Scorpio Barracuda renew Chevrolet smart key
10. Scorpio Barracuda renew Chevrolet flip remote key
11. Scorpio Barracuda renew Chrysler smart key
12. Scorpio Barracuda renew Chrysler Fobic key
13. Scorpio Barracuda renew Chrysler remote key
14. Scorpio Barracuda renew Citroen remote key
15. Scorpio Barracuda renew Citroen smart key
16. Scorpio Barracuda renew Dacia remote key
17. Scorpio Barracuda renew Fiat remote key
18. Scorpio Barracuda renew Fiat smart key
19. Scorpio Barracuda renew Ford remote key
20. Scorpio Barracuda renew Honda remote key
21. Scorpio Barracuda renew Honda smart key
22. Scorpio Barracuda renew Hyundai smart key
23. Scorpio Barracuda renew Kia smart key
24. Scorpio Barracuda renew Jaguar smart key
25. Scorpio Barracuda renew Jeep smart key
26. Scorpio Barracuda renew Lada remote key
27. Scorpio Barracuda renew Land Rover remote key
28. Scorpio Barracuda renew Land Rover smart key
29. Scorpio Barracuda renew Lincoln Smart key
30. Scorpio Barracuda renew Maserati smart key
31. Scorpio Barracuda renew Mini Copper smart key
32. Scorpio Barracuda renew Mitsubishi remote key
33. Scorpio Barracuda renew Mitsubishi smart key
34. Scorpio Barracuda renew Nissan remote key
35. Scorpio Barracuda renew Nissan smart key
36. Scorpio Barracuda renew Opel remote key
37. Scorpio Barracuda renew Opel smart key
38. Scorpio Barracuda renew Vauxhall remote key
39. Scorpio Barracuda renew Vauxhall smart key
40. Scorpio Barracuda renew Peugeot remote key
41. Scorpio Barracuda renew Peugeot smart key
42. Scorpio Barracuda renew Porsche smart key
43. Scorpio Barracuda renew Renault remote key
44. Scorpio Barracuda renew Renault Smart key
45. Scorpio Barracuda renew Renault card
46. Scorpio Barracuda renew Rolls Royce smart key
47. Scorpio Barracuda renew Smart remote key
48. Scorpio Barracuda renew Suzuki remote key
49. Scorpio Barracuda renew Toyota smart key
50. Scorpio Barracuda renew Volvo smart key
51. Scorpio Barracuda renew VW smart key
52. Scorpio Barracuda renew Geely smart key
53. Scorpio Barracuda renew HAVAL Remote key
54. Scorpio Barracuda renew Gelly smart key
55. Scorpio Barracuda renew Buick remote key
56. And more will be added soon

Scorpio Barracuda MQB dashboard calibration & Scorpio Barracuda MQB key programming for VAG MQB systems:

• Scorpio Barracuda Skoda Octavia MQB Johnson Controls instrument cluster dashboard calibration 5E0 920 861 E
• Scorpio Barracuda Skoda Octavia MQB Johnson Controls instrument cluster dashboard calibration 5E0 920 861 A
• Scorpio Barracuda Skoda Octavia A7 MQB Johnson Controls instrument cluster dashboard calibration 5E0 920 851 A
• Scorpio Barracuda Skoda Octavia MQB Johnson Controls instrument cluster dashboard calibration 5E0 920 781
• Scorpio Barracuda VW Passat MQB Johnson Controls instrument cluster dashboard calibration 3G0 920 741
• Scorpio Barracuda VW Passat MQB Johnson Controls instrument cluster dashboard calibration 5G1 920 741
• Scorpio Barracuda VW MQB Johnson Controls instrument cluster dashboard calibration 5G0 920 861
• Scorpio Barracuda VW MQB Johnson Controls instrument cluster dashboard calibration 5G0 920 861 A
• Note: all MQB systems required Barracuda Jtag adapter Set ABK-4631 & Barracuda VW MQB JCI software or an active Barracuda annual subscription ABK-4400-1YEAR

Barracuda Key Programming for Toyota H Immobilizer all keys lost

Barracuda Toyota H All Keys Lost Key Programming Requirements:

• Barracuda key programmer ABK-4400
• Barracuda H immo adapter ABK-4623
• Barracuda H immo software activation or an active Barracuda annual subscription ABK-4400-1YEAR
• Original Tango key programmer ABK-2087
• LKP-04 transponder chip ABK-4411
• Tango Toyota maker software or an Active Tango annual subscription ABK-2087-1YEAR
• Tango Toyota image generator H activation or an active Barracuda annual subscription ABK-4400-1YEAR

Barracuda Programmer system requirements:

• Windows XP/7/8/10
• External power supply adapter 9-24V, AC to DC, 5.5x2.1mm center-positive plug (not included in base version)
• USB 2.0/3.0

How to install Scorpio Barracuda Programmer Software:

• Download & extract the latest software from our download section
• Navigate to the extracted location & start Barracuda install V02.exe
• Follow the instructions that appear in the window
• Barracuda help files are in Adobe Acrobat format (*pdf) in order to view the you need to have Adobe Acrobat Reader installed

How to install Scorpio Lk Barracuda Software Driver:

• Connect Barracuda programmer to PC USB port
• Connect Barracuda programmer to external power supply
• Open Windows Device Manager and expand the Universal Serial Bus controllers or other Devices Tab (depends on Windows version)
• Select Barracuda Programmer in device manager
• Press right-click at it and choose Properties->Driver->Update Driver
• Select Browse my computer for driver software
• Navigate to Barracuda installation directory (default location C:\Program Files (86) Scorpio-LK\Barracuda)
• Select folder according to your OS (Example for Windows 10 64bit path is: ../Driver/Win8,10/64bit)
• Click Next and windows will finalize the process

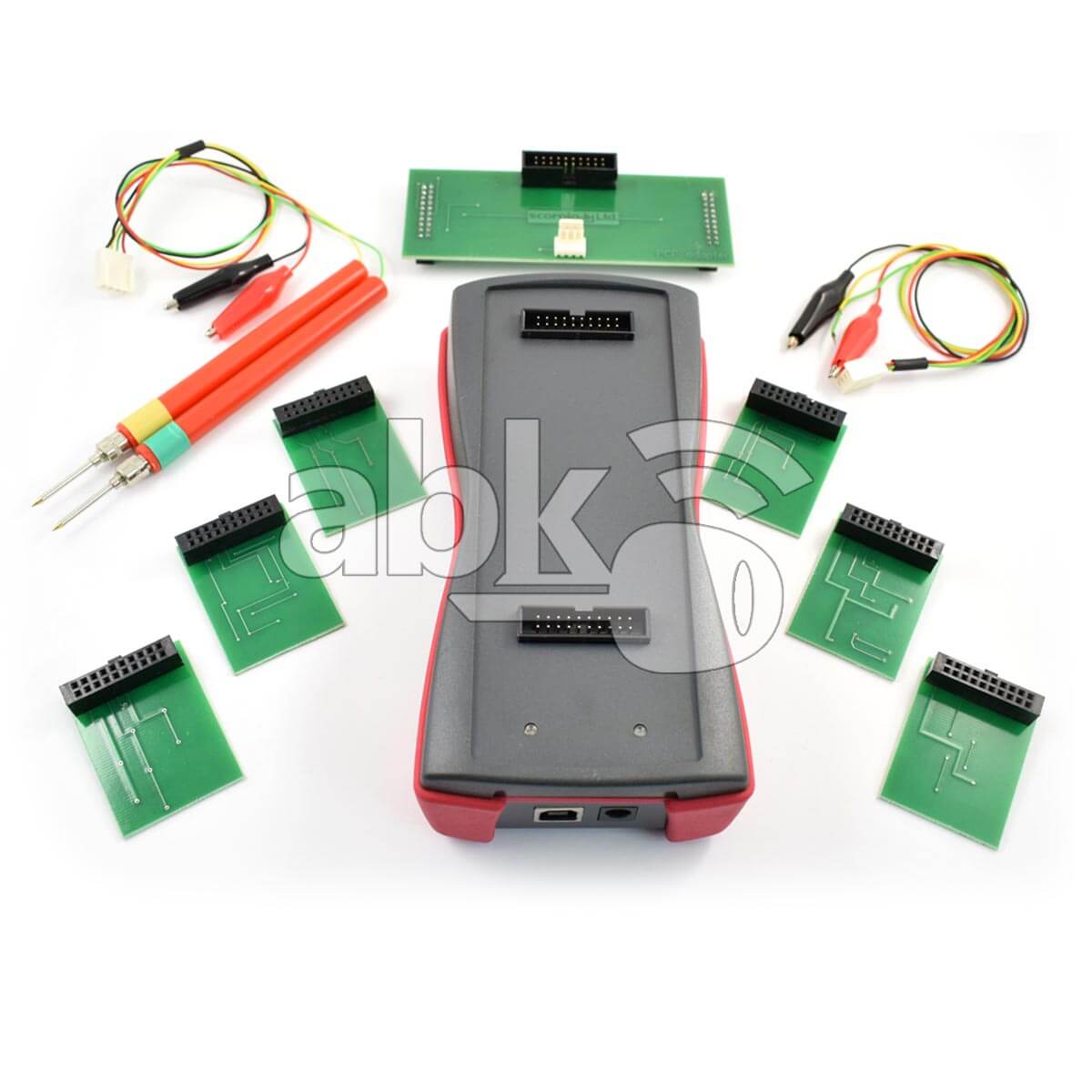

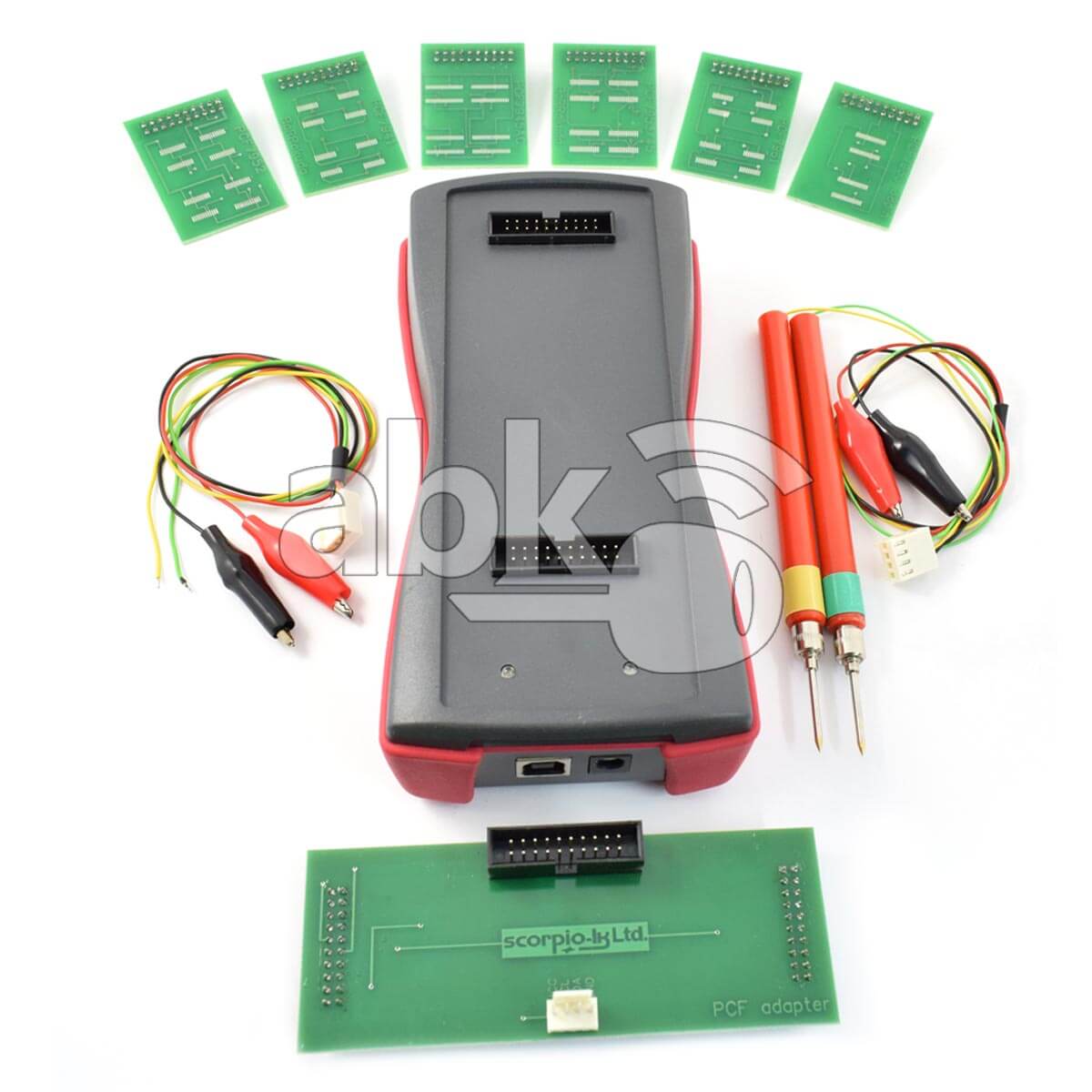

The Scorpio LK Barracuda Programming Device Box Contains:

• Scorpio Barracuda programmer base hardware
• Barracuda programmer base software
• Scorpio Barracuda key programming database HITAG reset module 1
• Barracuda adapter PCF (in-circuit & expansion)
• Barracuda cable PCF 1 (in-circuit,2x crocodile clips, 2x soldering tips)
• Barracuda cable PCF 2 (in-circuit, 2x crocodile clips & 2x probe needles)
• Barracuda adapter PCF 7941 (for soldering)
• Barracuda adapter PCF 7945AC (for soldering)
• Barracuda adapter PCF 7952 (for soldering)
• Barracuda adapter PCF 7953/45 (for soldering)
• Barracuda adapter PCF 7953 38pin (for soldering)
• Barracuda adapter PCF 7961 (for soldering)

Scorpio Barracuda Key Programmer & Remote Renewal Tool

Specifications:

Item Specifications:

• Product Code: ABK-4400
• Manufacturer: Scorpio [Genuine]

You Can Download the Barracuda Software from here

You Can Download the Barracuda Software Driver from here

ABK-4400 Barracuda Key Programmer Install Guide

ABK-4400 Barracuda Key Programmer TOYOTA H IMMO

ABK-4400 Barracuda SKODA OCTAVIA (A7) MQB Johnson Controls instrument (JCI) 5E0 920 851 A

ABK-4400 Barracuda SKODA OCTAVIA MQB Johnson Controls instrument (JCI) 5E0 920 781

ABK-4400 Barracuda SKODA OCTAVIA MQB Johnson Controls instrument (JCI) VISEON 5E0 920 861 A E

ABK-4400 Barracuda VW MQB Johnson Controls instrument (JCI) 5G0 920 861 A

ABK-4400 Barracuda VW MQB Johnson Controls instrument (JCI) 5G0 920 861

ABK-4400 Barracuda VW PASSAT MQB Johnson Controls instrument (JCI) 3G0 920 741

ABK-4400 Barracuda VW PASSAT MQB Johnson Controls instrument (JCI) 5G1 920 741

ABK-4400 Barracuda Key Programmer Features
